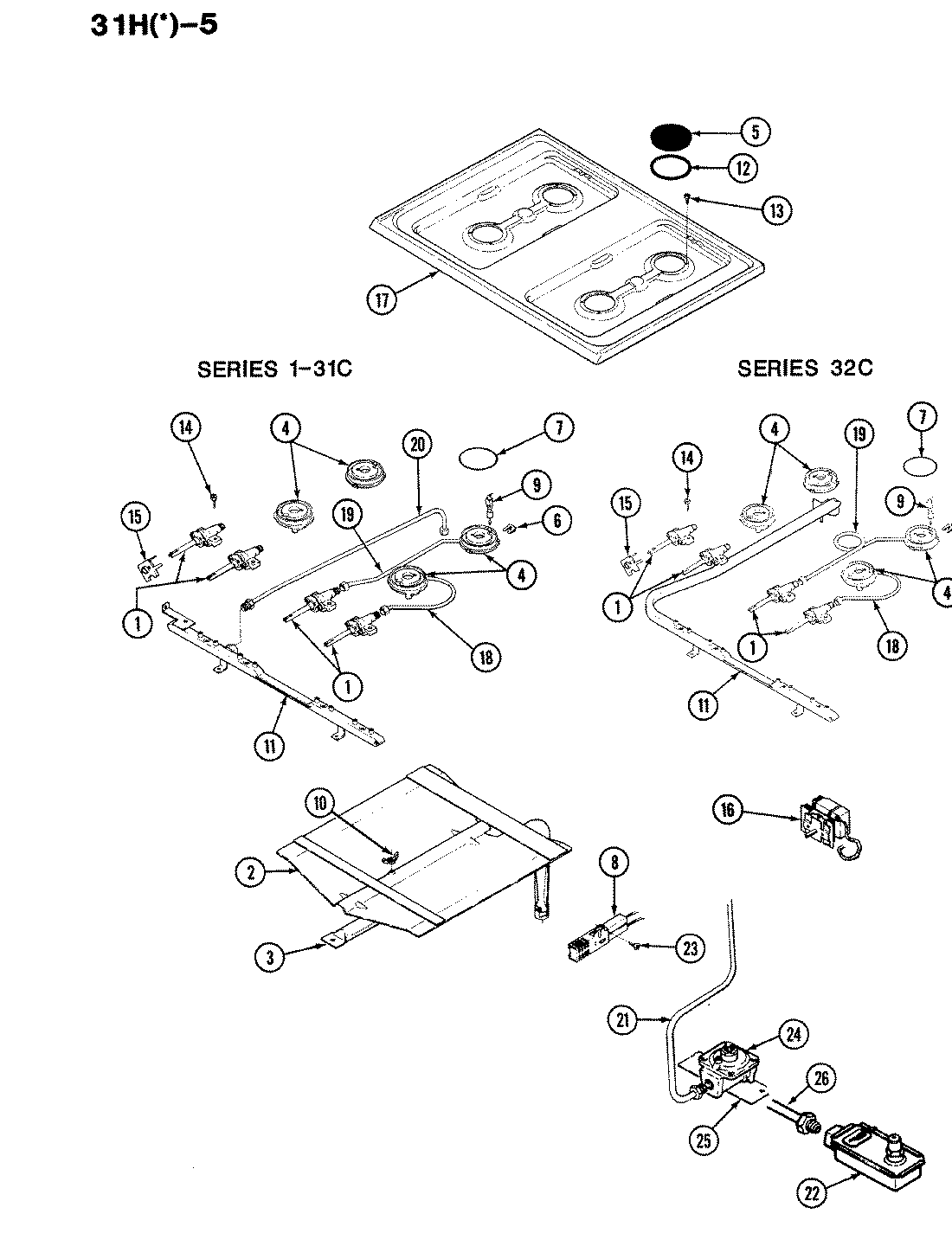

31HN-5KX 03 – CONTROL SYSTEM

Products

Position	Product
1	MAY 7502P141-60
1	MAY 7502P100-60
2	MAY 3601F181-45
3	MAY 3403A015-45
3	MAY 7505P101-60
4	MAY W10127325
4	MAY 7505P187-60
5	MAY 4005F167-80
5	MAY 7504P007-60
5	MAY 7504P005-60
5	MAY 4005F304-51
6	MAY 7507P053-60
6	MAY 7112P072-60
7	MAY 7201P037-60
7	MAY 7518P004-60
8	MAY 7432P062-60
8	MAY 7432P052-60
9	MAY 7432P053-60
9	MAY 7431P017-60
9	MAY 7431P016-60
9	MAY 7431P006-60
10	MAY 7509P034-60
10	NUT, WING
10	MAY 7509P033-60
11	MAY 7513P093-60
11	MAY 7513P086-60
11	MAY 7513P104-60
11	MAY 3830F006-45
12	MAY 2014F001-00
13	MAY 7101P256-60
14	MAY 3411F006-35
14	MAY 3411F006-34
14	MAY 7101P043-60
14	MAY 7214P003-60
15	WP7403P190-60 Whirlpool Switch
16	MAY 7515P008-60
16	MAY 7101P279-60
16	MAY 7404P063-60
17	MAY 2001F063-81
17	MAY 7746P025-60
17	MAY 7746P026-60
18	MAY 7506P076-60
19	MAY 7506P077-60
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7506P092-60
21	MAY 7506P090-60
21	MAY 7506P100-60
22	MAY 7501P017-60
23	SCREW (10-24X5/16-NI)
24	MAY 7510P026-60
25	MAY 5110P824-60
25	MAY 5110P825-60
25	MAY 3801F191-45
26	MAY 7506P098-60
26	MAY 5415A014-60
