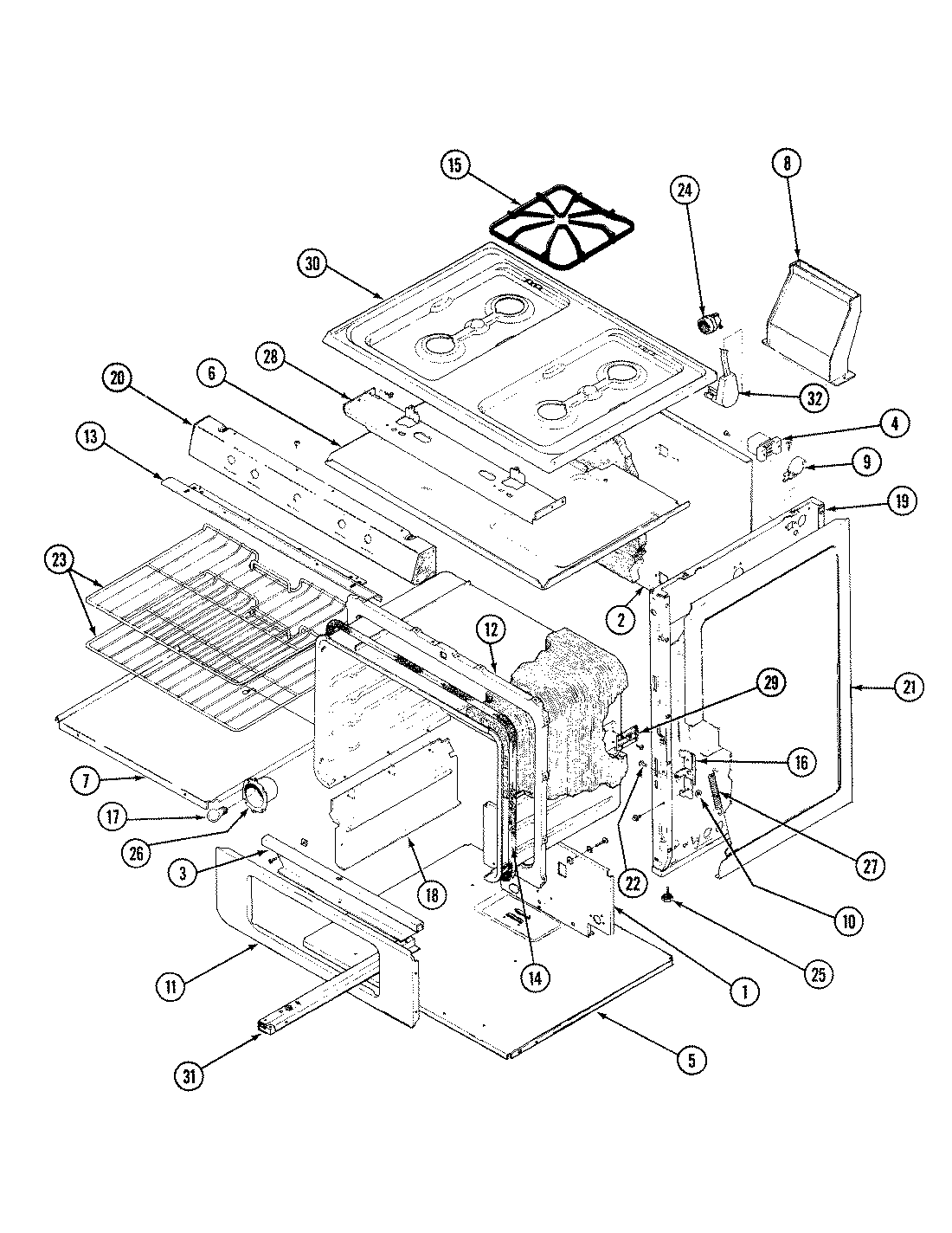

31HN-92KLX-EL 02 – BODY PARTS

Products

Position	Product
1	MAY 4002F078-45
1	MAY 4002F124-45
1	MAY 4002F166-45
2	MAY 4002F094-80
2	MAY 4002F144-80
2	MAY 4002F165-80
3	MAY 3601W124-16
4	MAY 7401P006-60
4	MAY 7401P010-60
5	MAY 4011F097-80
6	MAY 4011F095-80
7	MAY 7725P004-60
7	MAY 2205F012-17
8	MAY 3801F021-45
8	MAY 4006W026-80
9	MAY 7101P289-60
9	MAY 3801F101-80
9	MAY 3801F218-51
9	MAY 7101P061-60
9	MAY 3801F049-34
9	MAY 3801F047-34
10	WP7112P004-60 Whirlpool Thermal Clip
10	MAY 4005F034-80
10	MAY 7112P030-60
10	MAY 7112P019-60
11	MAY 2201F034-25
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 4012F019-80
14	MAY 7212P001-60
15	MAY 7105P002-60
15	MAY 2003W001-00
15	SPACER, HINGE (MAIN TOP)
15	MAY 2003W026-00
16	MAY 3418F030-34
16	WP7731P018-60 Whirlpool Knob
16	MAY 3418F029-34
16	MAY 7733P027-60
16	MAY 3413F002-11
17	MAY 7407P026-60
18	MAY 4009F006-45
19	MAY 4009W077-80
19	MAY 3401F004-11
19	MAY 4009W040-80
20	MAY 2616F010-81
21	MAY 2618F052-71
21	MAY 7728P051-60
21	MAY 2618F073-71
23	MAY 7801P030-60
24	MAY 7408P002-60
24	MAY 3804F010-50
25	MAY Y7101P25460
26	MAY 4001F016-11
27	MAY 7803P002-60
28	MAY 3807F221-80
29	MAY 3807F205-45
30	MAY 2001F035-01
31	MAY 3404A001-51
31	MAY 3404A013-45
31	MAY 3404A014-45
32	MAY 7402P014-60
