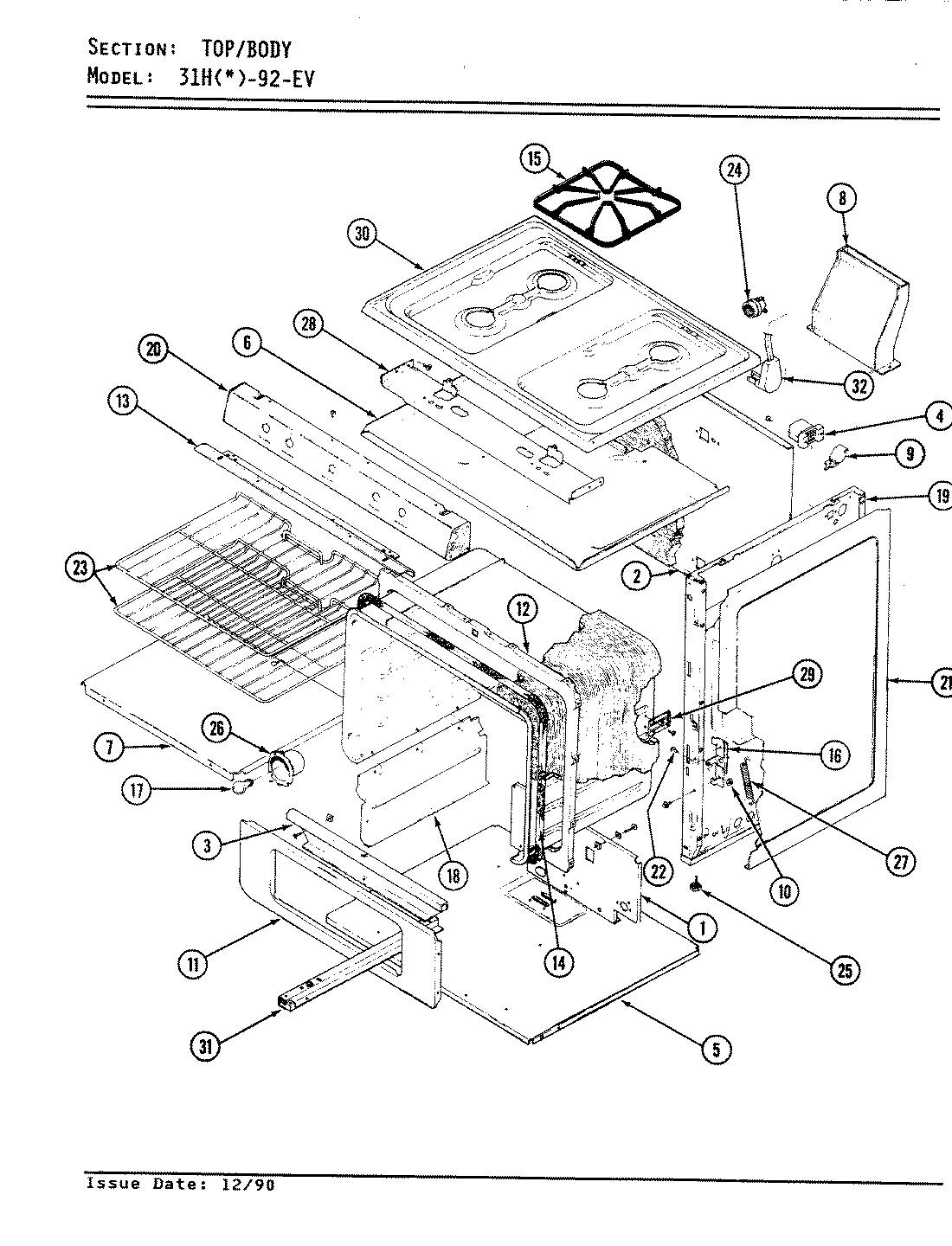

31HN-92KW-EV 04 – TOP ASSEMBLY/BODY

Products

Position	Product
1	MAY 4002F124-45
2	MAY 4002F144-80
3	MAY 3601W124-23
4	MAY 7401P006-60
4	MAY 7401P018-60
5	MAY 4011F161-80
6	MAY 4011F095-80
7	MAY 2205F020-21
7	1430283 Whirlpool Oven Gas Pan Kit, Chrome (4-Pack)
7	MAY 2205F012-23
8	MAY 3801F021-45
8	MAY 4006W026-80
9	MAY 7101P289-60
9	MAY 3801F218-51
9	BUSHING, SNAP
9	MAY 7101P061-60
9	MAY 3801F049-34
9	MAY 3801F047-34
9	MAY 3801F198-51
10	MAY 4005F034-80
10	WP7112P004-60 Whirlpool Thermal Clip
10	MAY 7112P019-60
10	MAY 7112P073-60
11	MAY 2201F034-25
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 4012F021-80
14	MAY 7212P001-60
15	SPACER, HINGE (MAIN TOP)
15	MAY 2003W026-00
15	MAY 2003W001-00
15	SCREW
16	MAY 7733P046-60
16	MAY 3420A033-34
16	MAY 7731P044-60
17	MAY 7407P026-60
18	MAY 4009F045-45
19	MAY 3413F002-23
19	MAY 4009W077-80
19	MAY 3401F004-23
19	MAY 4009W040-80
20	MAY 7712P113-60
21	MAY 2618F073-71
23	MAY 7801P030-60
24	MAY 7408P002-60
24	MAY 3804F010-50
25	MAY Y7101P25460
26	MAY 4001F016-23
26	MAY 4001F016-19
27	WP7803P058-60 Whirlpool Spring
28	MAY 3807F347-51
29	MAY 3807F205-45
30	MAY 2001F035-81
31	MAY 3404A014-51
31	MAY 3404A013-51
32	MAY 7402P014-60
33	MAY 7401P013-60
