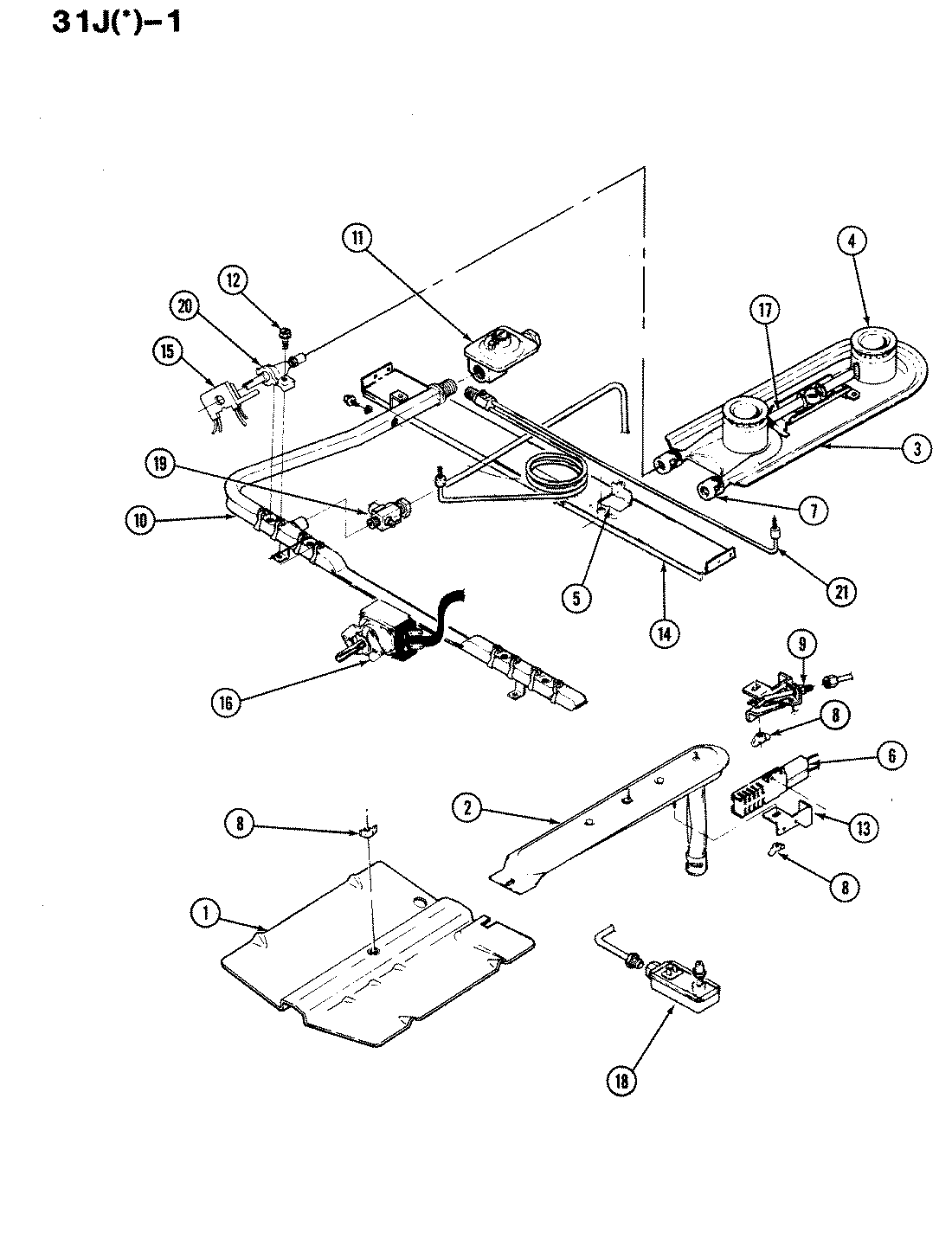

31JA-1XS-ON 02 – CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F181-45
2	MAY 7505P101-60
2	MAY 3403D027-45
2	MAY 3403A015-45
3	MAY 3412A004-23
3	MAY 3412A004-19
4	MAY 7504P001-60
6	MAY 7711P137-60
6	WP7711P135-60 Whirlpool Knob
7	MAY 7103P070-60
7	MAY 3411F004-34
8	NUT, WING
9	MAY 7432P068-60
9	MAY 1566267
10	MAY 7513P131-60
10	MAY 7513P028-60
10	MAY 7513P102-60
11	MAY 7510P002-60
11	MAY 3804F001-44
12	MAY 7101P296-60
12	MAY 7101P043-60
12	MAY 7101P044-60
12	MAY 3411F006-35
12	MAY 3411F006-34
12	MAY 7214P003-60
13	MAY 3807F120-34
14	MAY 3807F347-51
14	MAY 3807F204-34
16	MAY 7515P032-60
16	MAY 7101P295-60
16	MAY 7101P010-60
16	MAY 7515P015-60
16	MAY 7515P026-60
17	MAY 3414F050-44
17	MAY 3414F062-44
17	MAY 7506P006-60
17	MAY 3414F099-44
18	MAY 7501P101-60
18	MAY 7501P061-60
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7502P222-60
20	MAY 7502P109-60
20	MAY 7502P174-60
21	MAY 7505P193-60
21	MAY 7505P081-60
