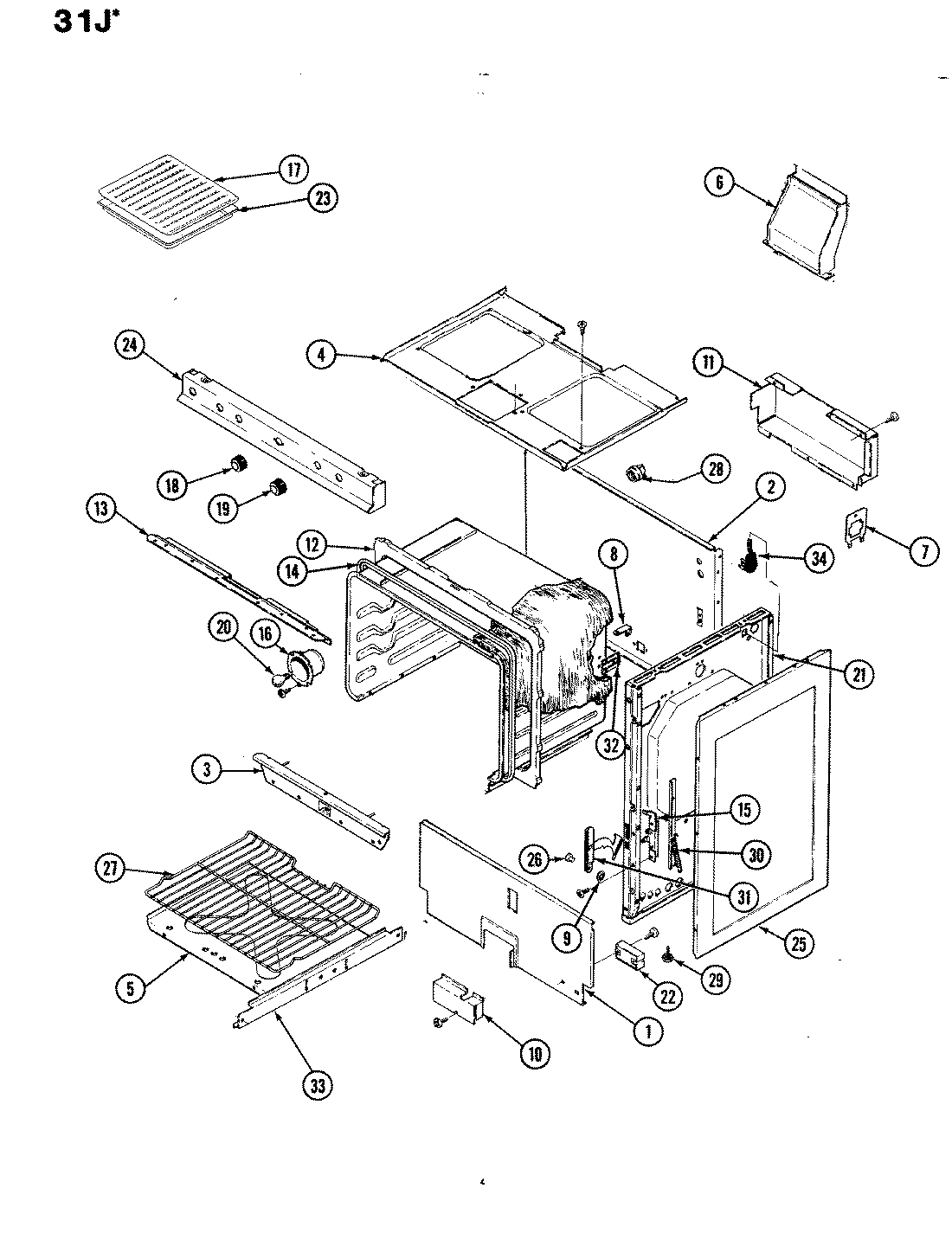

| 1 | MAY 4002F123-45 |
| 1 | MAY 7101P080-60 |
| 1 | MAY 4002F097-45 |
| 2 | MAY 4002F165-80 |
| 2 | MAY 4002F094-80 |
| 3 | MAY 7401P010-60 |
| 3 | MAY 7401P017-60 |
| 3 | MAY 4011F149-80 |
| 3 | MAY 3601W124-16 |
| 4 | MAY 4011F095-80 |
| 5 | MAY 2205F012-16 |
| 6 | MAY 4006W026-80 |
| 7 | MAY 3801F021-45 |
| 8 | MAY 7101P289-60 |
| 8 | MAY 3801F198-51 |
| 8 | MAY 3801F218-51 |
| 8 | MAY 3801F047-34 |
| 8 | MAY 3801F049-34 |
| 9 | MAY 7112P042-60 |
| 9 | MAY 7112P030-60 |
| 9 | MAY 4005F279-45 |
| 9 | WP7112P004-60 Whirlpool Thermal Clip |
| 9 | MAY 7112P019-60 |
| 10 | MAY 4005F088-80 |
| 10 | MAY 4005F167-80 |
| 11 | MAY 2201F034-23 |
| 11 | MAY 4005F173-51 |
| 12 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 12 | WP74003976 Whirlpool Screw |
| 13 | MAY 4012F019-80 |
| 14 | MAY 7212P001-60 |
| 15 | MAY 3418A029-34 |
| 15 | MAY 3418A030-34 |
| 16 | MAY 4001F016-19 |
| 16 | MAY 4001F016-23 |
| 17 | MAY Y3413F01619 |
| 17 | MAY 3413F002-11 |
| 18 | WP7731P018-60 Whirlpool Knob |
| 19 | MAY 7733P053-60 |
| 19 | MAY 7733P065-60 |
| 19 | MAY 7733P059-60 |
| 19 | MAY 7733P038-60 |
| 20 | MAY 4009F045-45 |
| 20 | MAY 7407P026-60 |
| 21 | MAY 4009W077-80 |
| 21 | MAY 04000019 |
| 21 | MAY 7103P045-60 |
| 22 | MAY 7431P016-60 |
| 22 | MAY 7431P017-60 |
| 22 | MAY 7431P006-60 |
| 23 | MAY 3401F004-23 |
| 23 | MAY Y3401F02019 |
| 24 | MAY 7712A058-60 |
| 25 | MAY 2618F052-74 |
| 25 | MAY 2618F073-74 |
| 27 | MAY 7801P030-60 |
| 28 | MAY 7408P002-60 |
| 28 | MAY 3804F010-50 |
| 29 | MAY Y7101P25460 |
| 29 | MAY 8003P010-60 |
| 29 | MAY 8010P048-60 |
| 30 | MAY 7803P055-60 |
| 31 | MAY 3420A033-34 |
| 32 | MAY 3807F205-45 |
| 32 | MAY 7101P061-60 |
| 33 | MAY 3404A013-51 |
| 33 | MAY 3404A014-51 |
| 33 | WP4159193 Whirlpool Screw |
| 34 | MAY 7402P024-60 |
