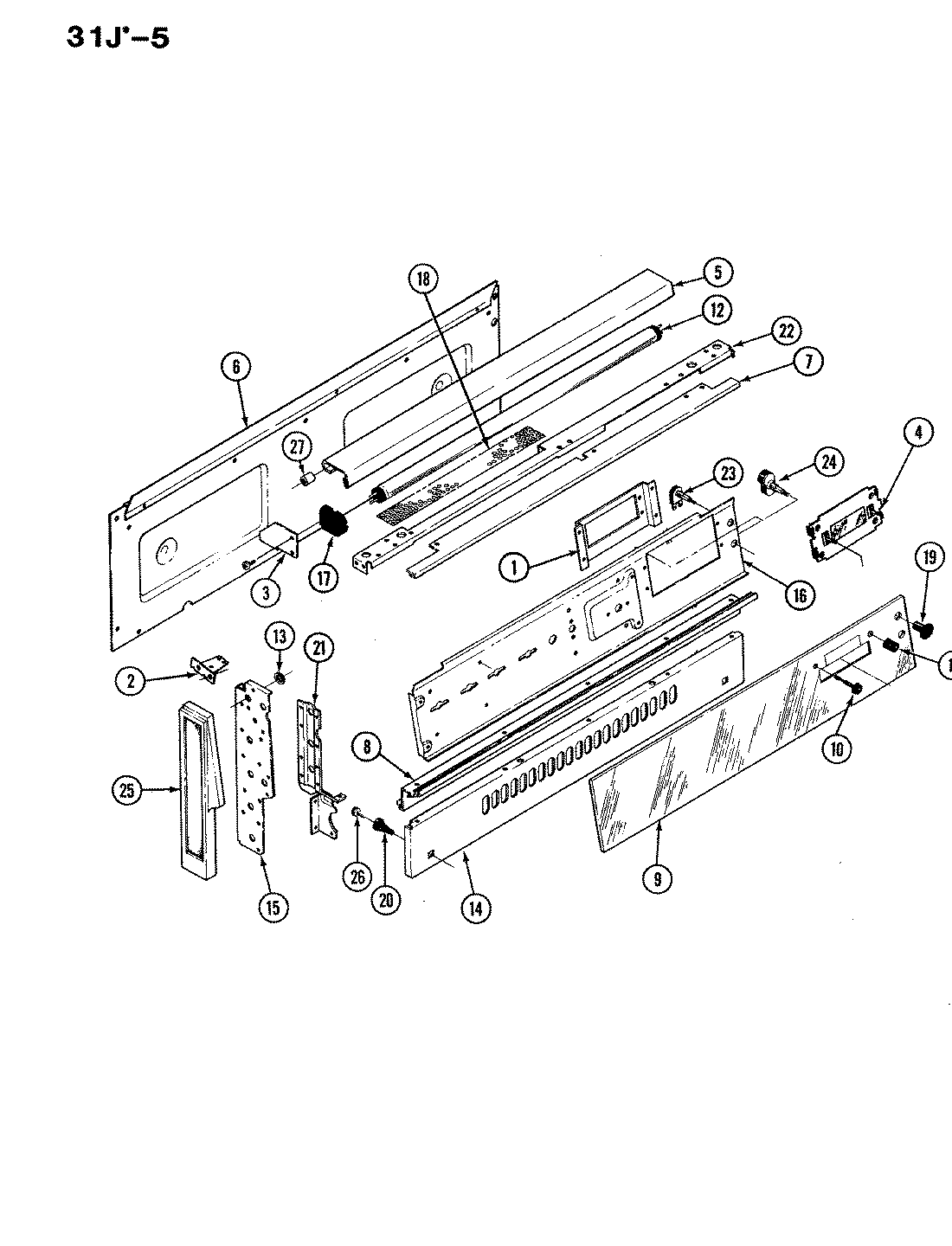

31JN-5KLX 02 – CONTROL PANEL

Products

Position	Product
1	MAY 3801F108-45
1	MAY 7412P005-60
2	MAY 3801F109-34
2	MAY 3801F002-34
3	MAY 3801F006-34
4	MAY 7602P097-60
4	MAY 7602P088-60
5	MAY 7724P010-60
5	MAY 4005F155-80
6	MAY 4005F100-80
7	MAY 7706P166-60
8	MAY 7706P097-60
9	MAY 7910P084-60
10	MAY 7711P422-60
11	MAY 7711P172-60
12	MAY 7407P004-60
13	WP4159193 Whirlpool Screw
14	MAY 2620W018-90
15	MAY 3605F006-80
15	MAY 3605F008-80
16	MAY 3605F144-80
17	MAY 7408P005-60
17	MAY 7101P008-60
18	MAY 3604F079-80
19	MAY 7214P007-60
20	SPACER, HINGE (MAIN TOP)
21	MAY 3807F348-51
21	MAY 3807F349-51
22	MAY 3807F215-80
23	MAY 7403P179-60
24	MAY 7728P053-60
24	MAY 7403P104-60
25	MAY 7726P030-60
25	MAY 7726P029-60
25	MAY 7720P061-60
26	SCREW
27	MAY 1089206
