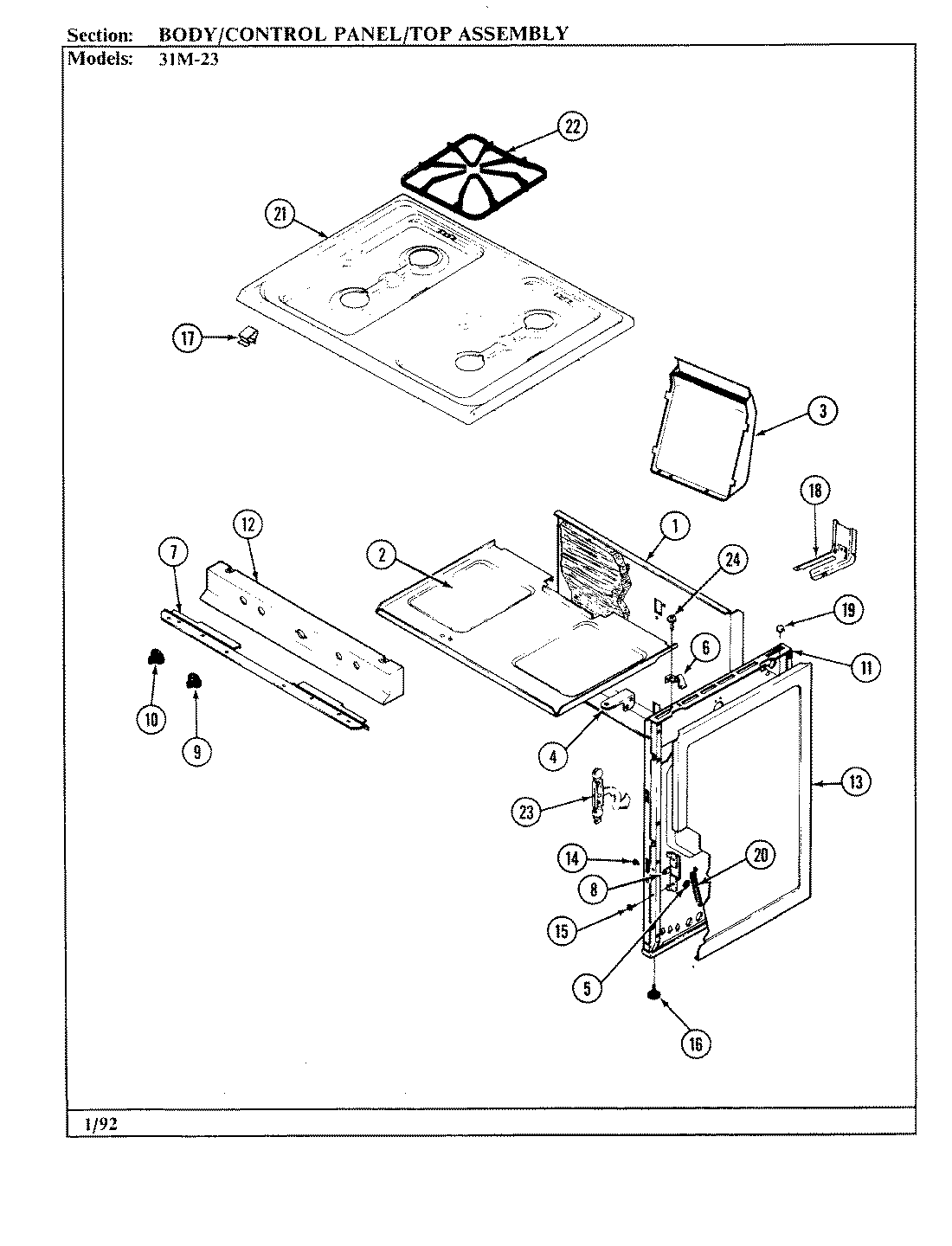

31MA-23KX-ON 02 – BODY/CONTROL PANEL/TOP ASSEMBLY
Written by
in
31MA-23KX-ON 02 – BODY/CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 4002F165-80
2
MAY 4011F196-80
3
MAY 4006W026-80
4
MAY 3801F049-34
4
MAY 3801F047-34
5
MAY 7112P019-60
6
MAY 7112P073-60
7
MAY 4012F021-80
8
MAY 3418A029-34
8
MAY 3418A030-34
8
MAY 8016P008-60
9
WP7731P018-60 Whirlpool Knob
10
MAY 7733P027-60
11
MAY 8008P012-60
11
MAY 7103P045-60
11
MAY 4009W078-80
12
MAY 7118P004-60
12
MAY 7712A058-60
13
MAY 2618F073-71
13
MAY 2618F073-74
15
WP4159193 Whirlpool Screw
16
MAY Y7101P25460
17
MAY 7112P087-60
18
MAY 7101P289-60
18
MAY 3801F218-51
19
MAY 7107P017-60
19
MAY 8003P011-60
20
WP7803P058-60 Whirlpool Spring
21
MAY 3807F431-45
21
MAY 2001F080-81
21
MAY 2001F080-84
22
MAY 2003F029-00
23
MAY 3420A033-34
24
MAY 7101P061-60
24
MAY 5120A008-60
24
MAY 5125A324-60
24
MAY 5185D253-60
←
