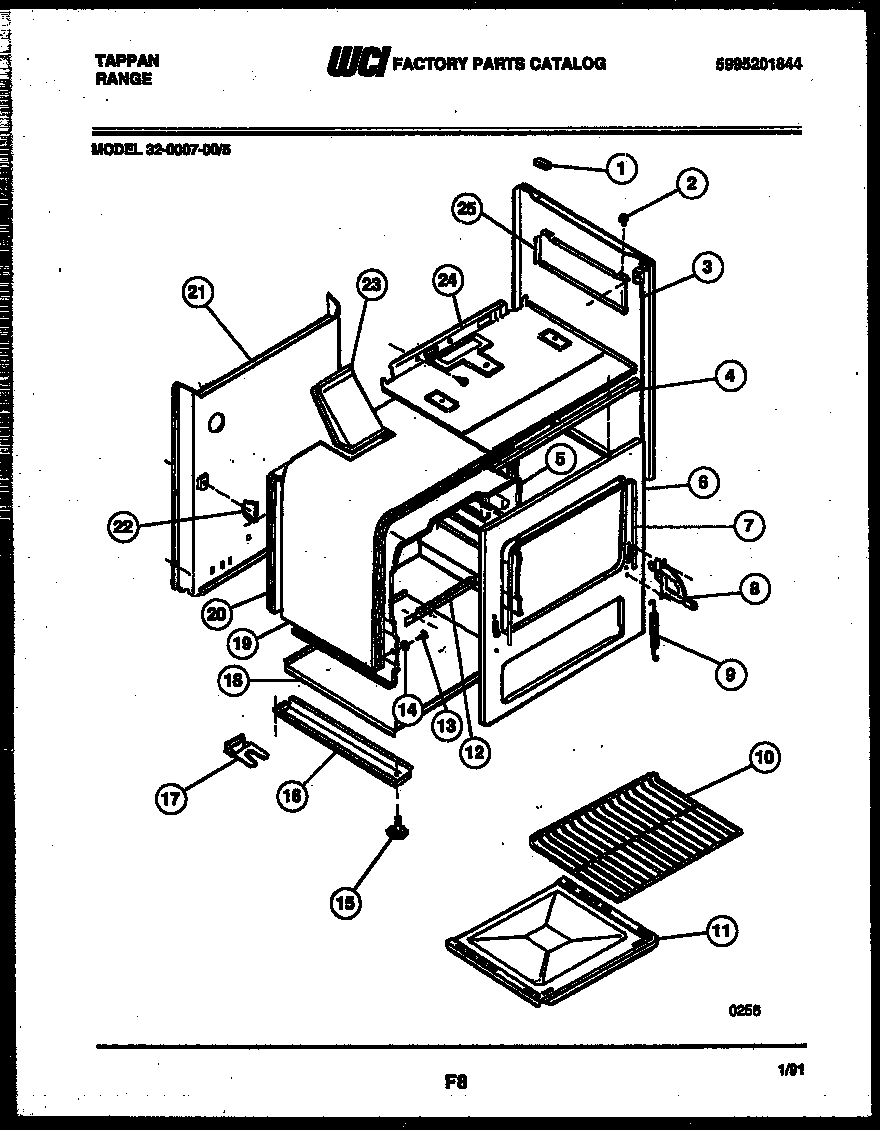

32-0007-00-05 07 – BODY PARTS

32-0007-00-05 07 – BODY PARTS

Written by

in

32-0007-00-05 07 – BODY PARTS

Products

PositionProduct
*42381WCI 5303210892
*42381WCI 5303210891
*42381WCI 08008009
*42382CLIP,BODYSIDE
1GROMMET-MAINTOP
2GROMMET
3BODYSIDE PANEL-WHITE (2)
3PANEL BODYSIDE-ALMD
4SUPPORT-CONTROL PNL
5COVEN LINER-BACK
5OVEN LINER-SIDE RH
5AOVEN LINER-SIDE LH
5BOVEN LINER-TOP
6FRAME-FRONT
7SEAL OVEN DOOR
8318348801 Frigidaire Oven Left Side Door Hinge
8AHINGE ASSY-RH
9SPRING-OVEN DOOR
10WCI 3016158
11OVEN-BOTTOM
12SUPPORT-OVEN BOTTOM
13WCI 08008037
14WCI 3131040
16ARAIL-BASE, LH
16Rail,base ,RH
17ANTI-TIP KIT
18MAIN BOTTOM
19INSULATION WRAPPER
20WCI 3131044
21WCI 5303212609
22SUPPORT-REAR OVN (2)
23WCI 3017173
24BURNER BOX
25SHIELD-BURNER BOX RH
25ASHIELD-BURNER BOX LH
