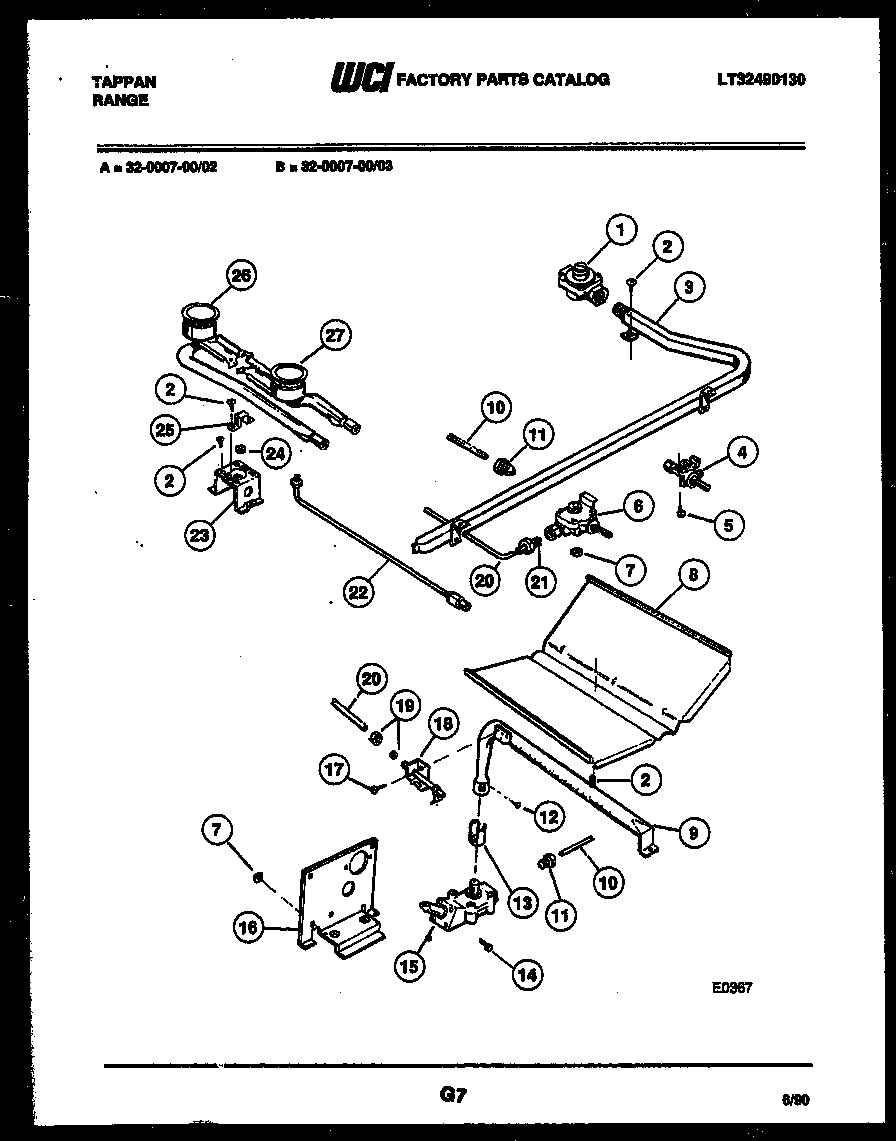

32-0007-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

32-0007-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-0007-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2SCREW, 10 X 3/8
3MANIFOLD
4WCI 5303131057
5BOLT VALVE MOUNTING
6WCI 5308013927
75303013272 Frigidaire Oven Nut
8BAFFLE-OVEN BURNER
9WCI 5308013855
10TUBE OVEN SUPPLY
11NUT-LOXIT (3/8)
12WCI 3131065
13MIXER-AIR
14WCI 3131067
15WCI 5308013942
16SUPPORT-OVEN SAFETY VALVE
17CLIP-CAPILLARY (4) (NON-ILLUSTRATED)
18WCI 3205598
19NUT & SLEEVE
20TUBE-OVEN PILOT
21WCI 3131074
22TUBE-PILOT
23SUPPORT-TOP BURNER
24WCI 3131077
25STRAP – PILOT SHIELD
26Burner,top ,rear
27BURNER-TOP FRONT
