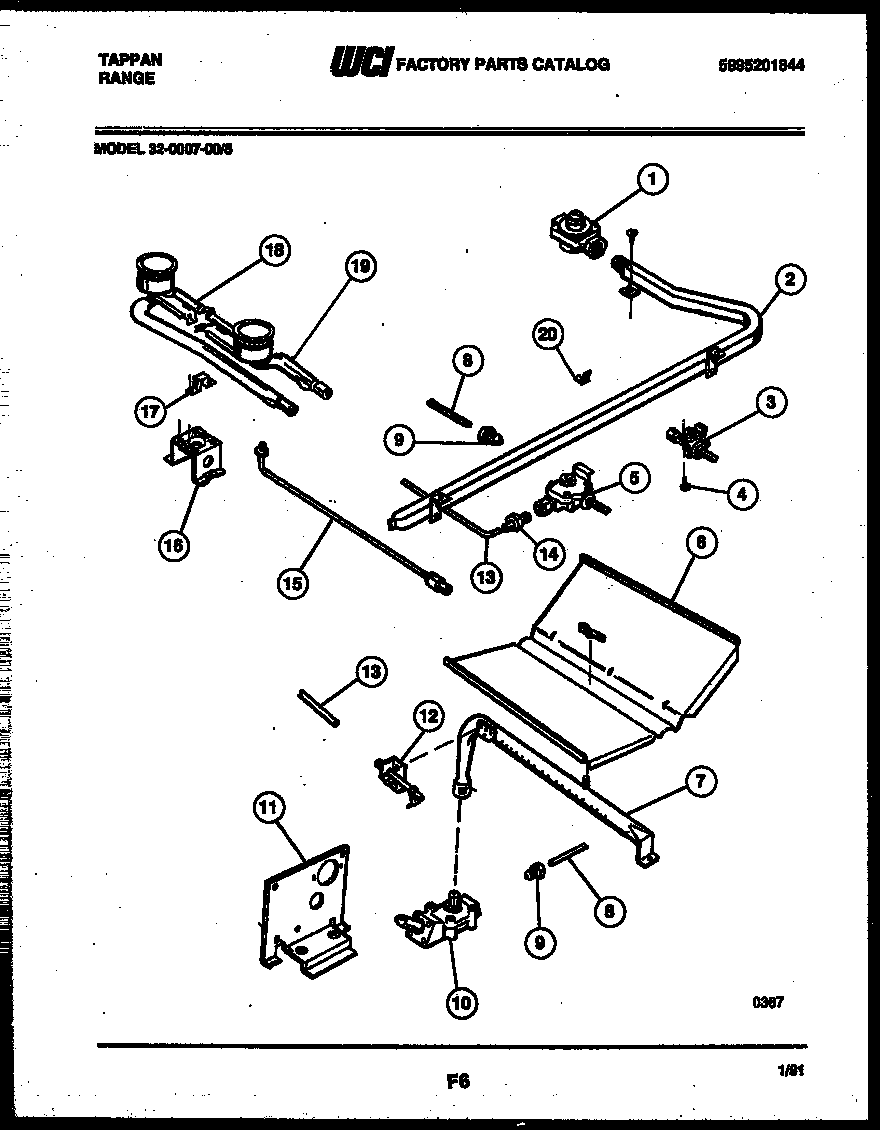

32-0007-23-05 06 – BURNER, MANIFOLD AND GAS CONTROL

32-0007-23-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-0007-23-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3WCI 5303131057
4BOLT VALVE MTG
5WCI 5308013927
6BAFFLE-OVEN BURNER
7WCI 5308013855
8TUBE OVEN SUPPLY
9NUT-LOXIT (3/8)
10WCI 5308013942
11SUPPORT-OVEN SAFETY VALVE
12WCI 3205598
13TUBE-OVEN PILOT
14WCI 3131074
15TUBE-PILOT
16SUPPORT-TOP BURNER
17STRAP – PILOT SHIELD
18Burner,top ,rear
19BURNER-TOP FRONT
20WCI 5300009126
