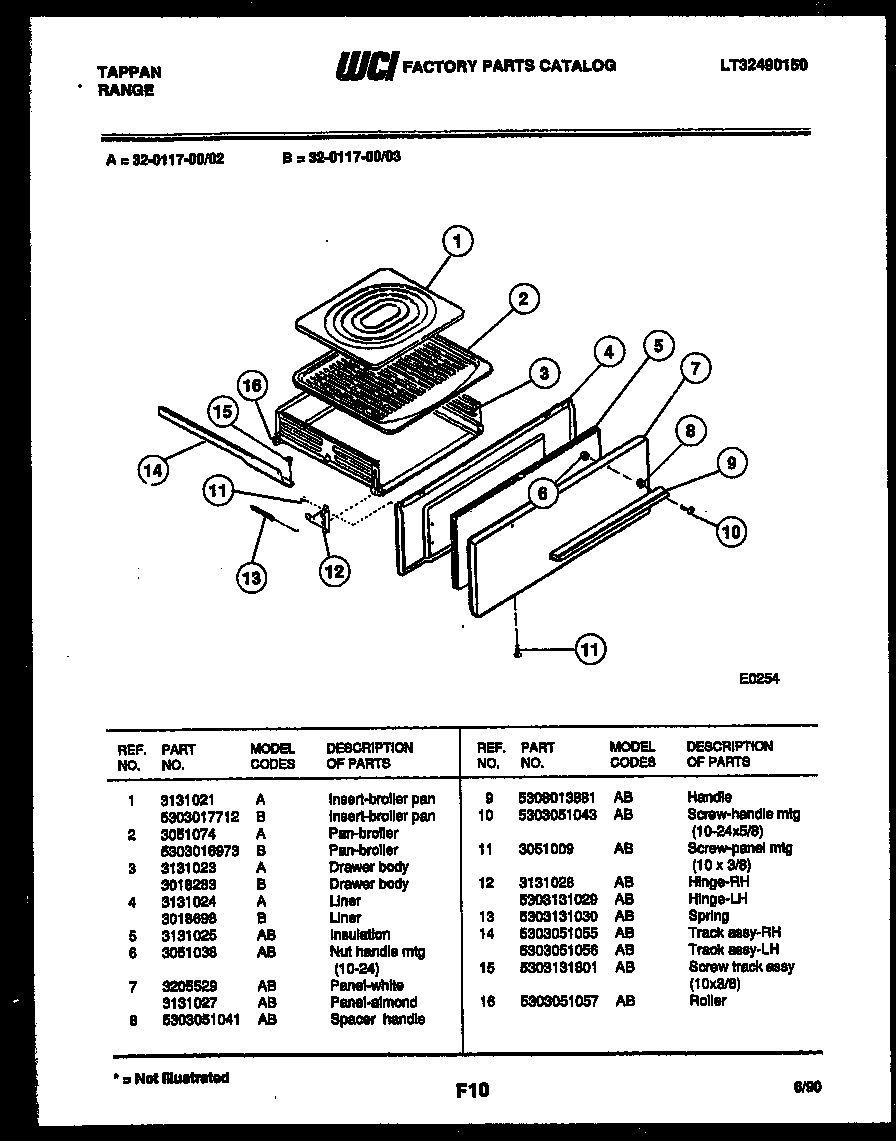

32-0117-23-03 05 – BROILER DRAWER PARTS

32-0117-23-03 05 – BROILER DRAWER PARTS

Written by

in

32-0117-23-03 05 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 5303017712
2WCI 5303016973
35304504568 Frigidaire Drawer Assembly
4LINER
5WCI 3131025
65303013272 Frigidaire Oven Nut
7WCI 3131027
8SPACER HANDLE
9WCI 5308013881
105303292012 Frigidaire Oven Screw
11WCI 3051009
12HINGE – RH
12AHINGE – LH
13SPRING
14TRACK ASSY-RH
14ATRACK ASSY-LH
15SCREW, 10 X 3/8
16ROLLER
