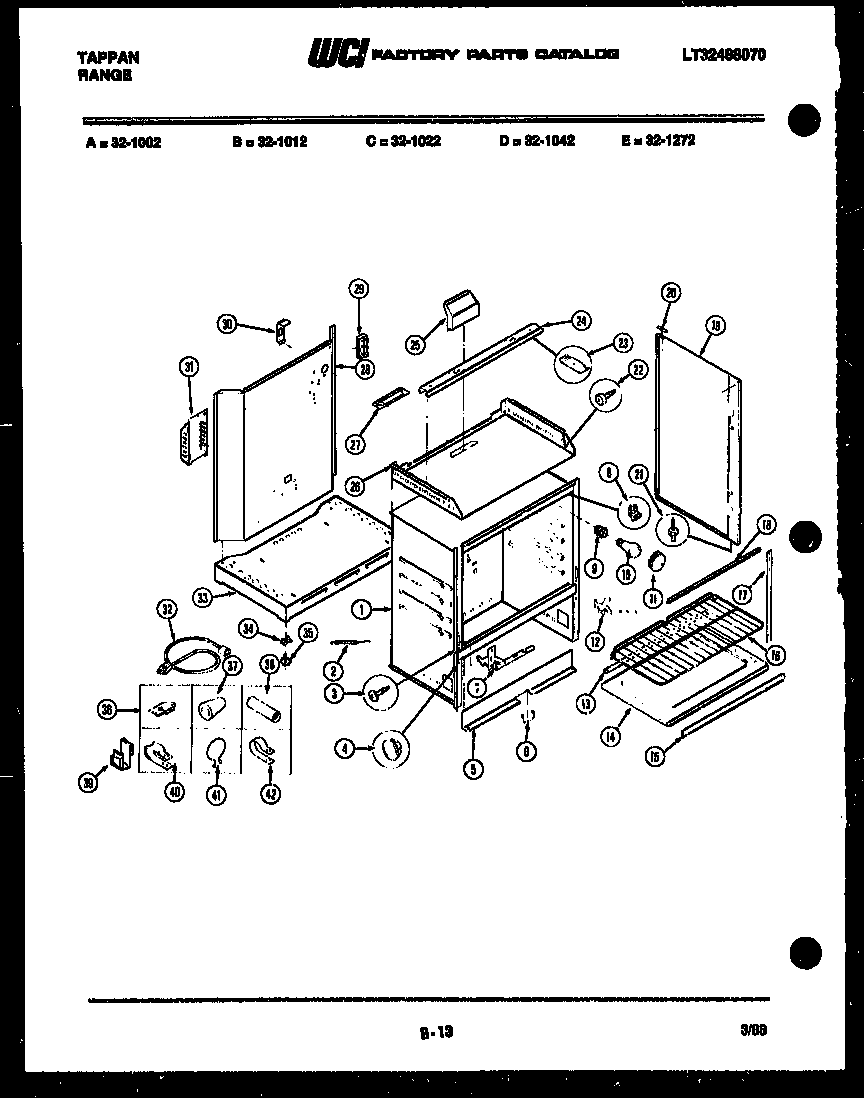

32-1002-00-01 15 – BODY PARTS

Products

Position	Product
2	SPRING-OVN DR CAM (2)
3	SCREW-SHOULDER 8A X 3/8`` (4)
4	BUTTON-GLIDE 27/64`` D.
5	SHIELD-WOOL-LWR FRONT
6	RETAINER-OVN BURNR LOT 3
7	CAM-OVEN DOOR L
8	5303284616 Frigidaire Range Bulb Clip Thermostat
11	WCI 557T021P12
12A	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
12	CAM-OVEN DOOR R
13	WCI 008T479F01
14	WCI 058T035F01-89
14A	SCREW-OVN BTM 8-18 X 1`` BPT KNRLD HD (2) (NON-ILLUSTRATED)
15	SEAL-DR TOP & BTM
16	RACK, OVEN (2)
17	SEAL-OVEN DOOR (SIDE)
18	SEAL-OVEN DOOR (TOP BTM.) (2)
19	PNL, BODY, WHITE (2)
