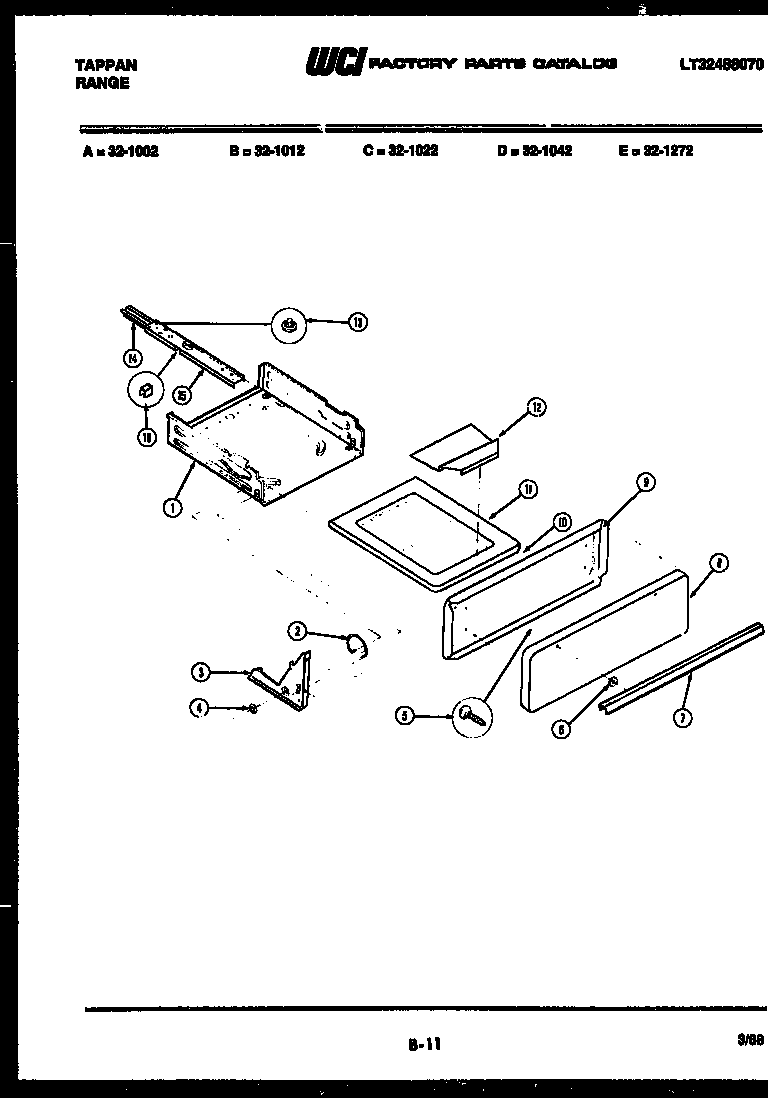

32-1002-23-01 14 – BROILER DRAWER PARTS

Written by

Products

Position	Product
*93184	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
*93241	SCREW DUCT (2) (NON-ILLUSTRATED)
8A	INSULATION
9	WCI 381T077F04-89
10	PIN, HINGE (2)
11	WCI 539T005F01-89
13	BUTTON-GLIDE 27/64“ D.
14	CHANNEL-GLIDE-LOWER LOT 1
15	CHANL-GLIDE UPPER LOT 1-9
16	BUTTON-GUIDE
