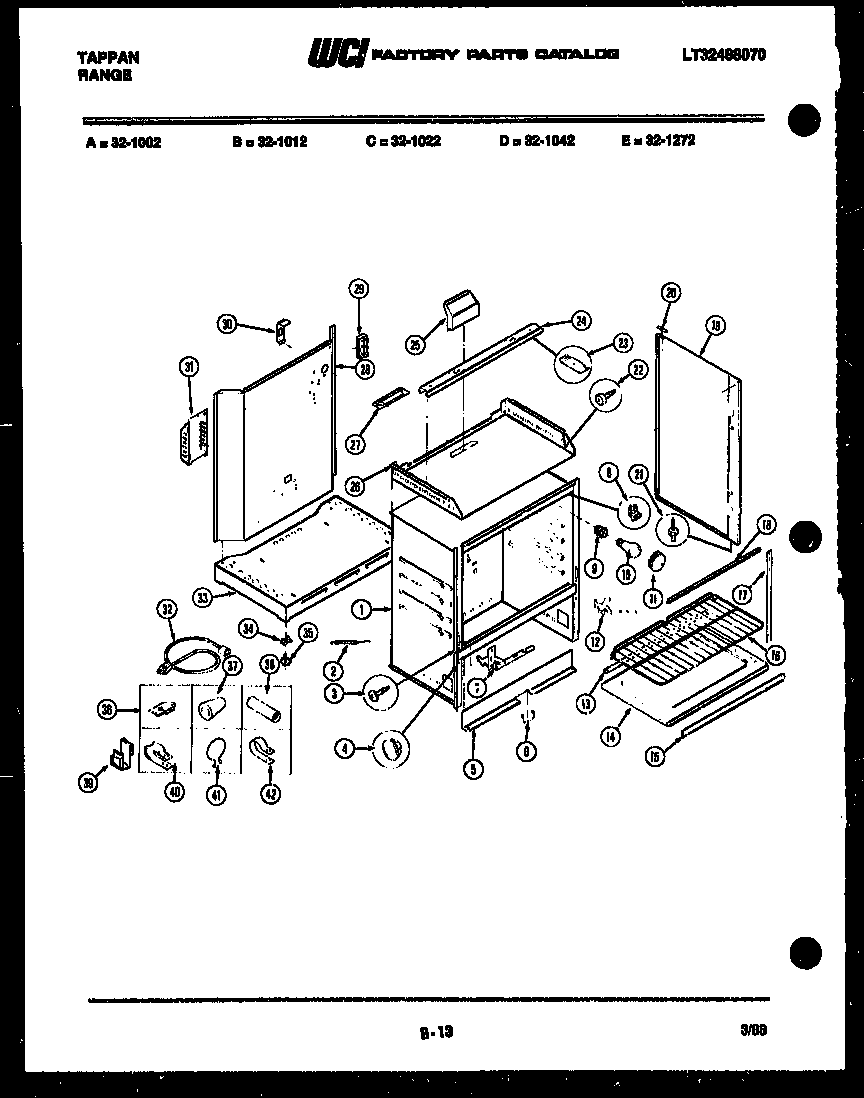

32-1002-23-07 15 – BODY PARTS

Products

Position	Product
2	SPRING-OVN DR CAM (2)
3	SCREW-SHOULDER 8A X 3/8“ (4)
4	BUTTON-GLIDE 27/64“ D.
5	SHIELD-WOOL-LWR FRONT
6	RETAINER-OVN BURNR LOT 3
7	CAM, OVN DR, LH
8	5303284616 Frigidaire Range Bulb Clip Thermostat
11	WCI 557T021P12
12A	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
12	CAM, OVN DR, RH
14A	SCREW-OVN BTM 8-18 X 1“ BPT KNRLD HD (2) (NON-ILLUSTRATED)
14	WCI 058T035F01-87
15	SEAL-DR TOP & BTM
16	RACK-DOOR
17	SEAL, DOOR SIDES (2)
