32-1002-57-02 14 – BROILER DRAWER PARTS

32-1002-57-02 14 – BROILER DRAWER PARTS

Written by

in

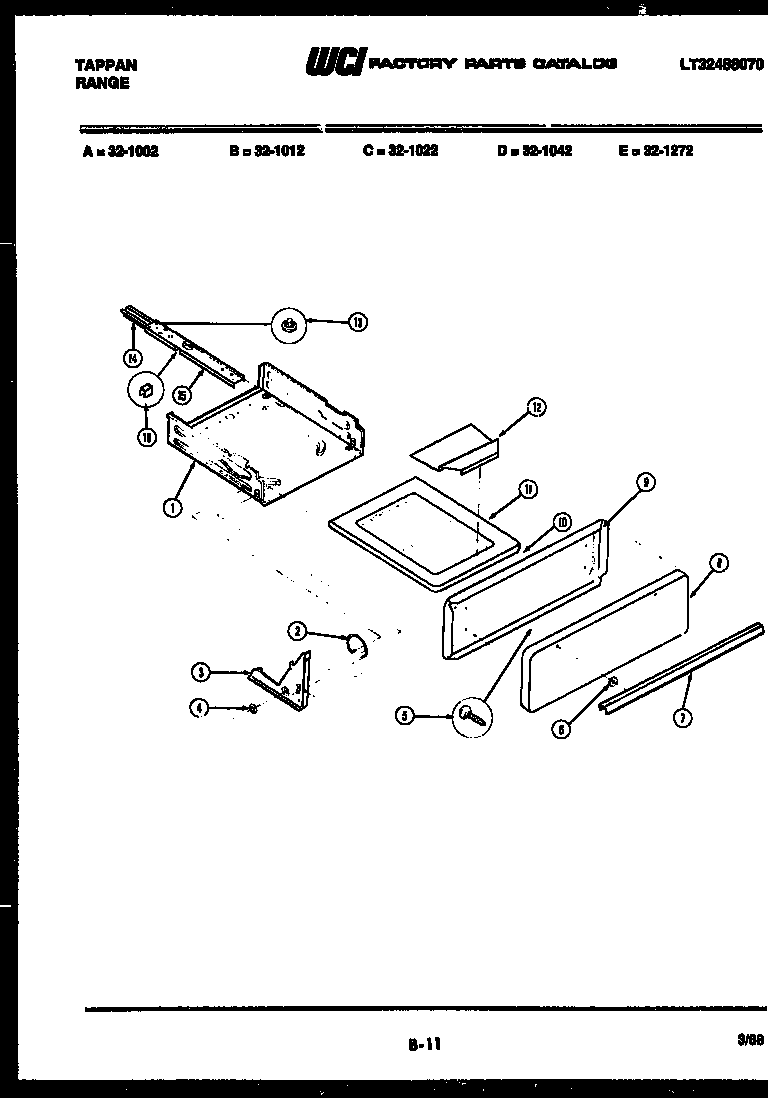

32-1002-57-02 14 – BROILER DRAWER PARTS

Products

Position	Product
*11350	WCI 636T128P01
*11353	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
8A	INSULATION
9	WCI 381T077F04-89
10	PIN, HINGE (2)
11	WCI 539T005F01-89
13	BUTTON-GLIDE 27/64“ D.
14	CHANNEL-GLIDE-LOWER LOT 1
15	CHANL-GLIDE UPPER LOT 1-9
16	BUTTON-GUIDE
