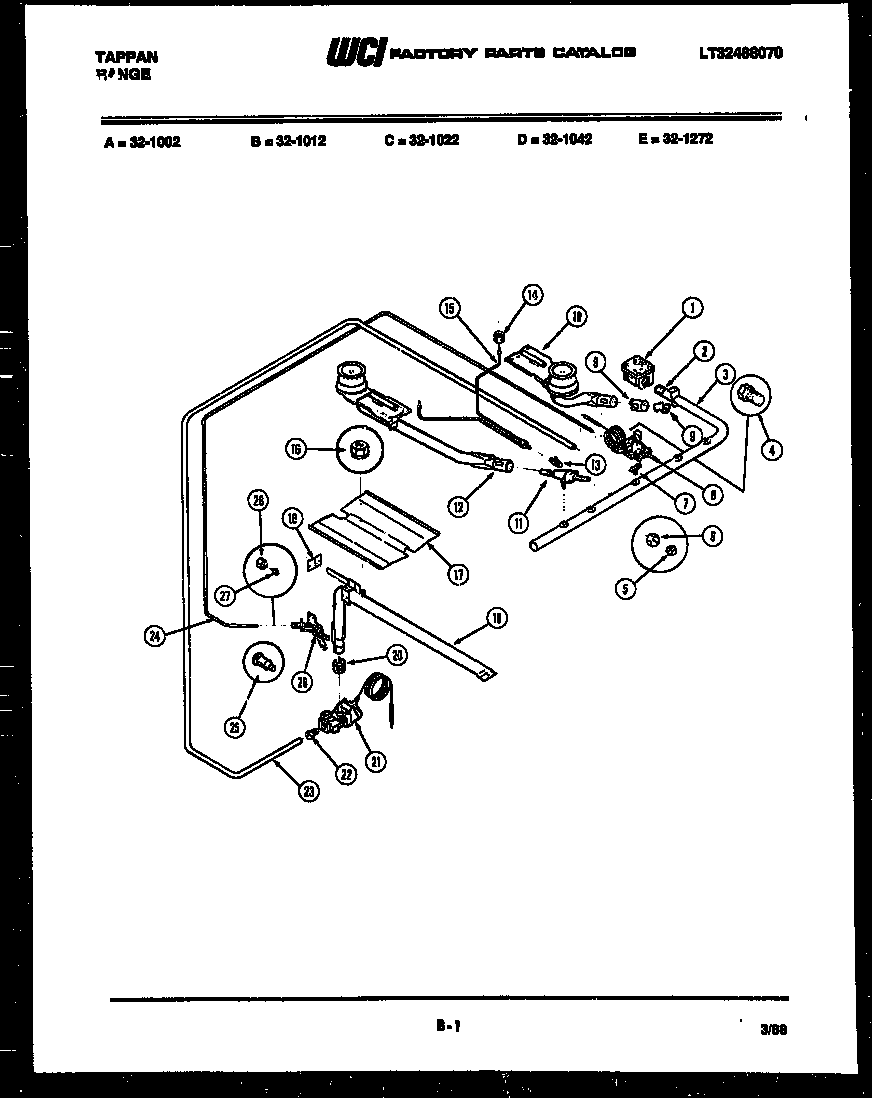

32-1002-57-11 09 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1CONTRL-PRESSURE REGULATOR
3WCI 439T046P04
4LOXIT NUT-THERMO PILOT TUBE 3/16“ LOT 2-11
5WCI T7-205-2
5FERRULE 3/8“
6COMPRESSION NUT 3/8“
7WCI 003T039P01
8THERMOSTAT-OVEN
8ASCREW-THERMO MTG 10-24 X 9/32“ HEX HD (2) (NON-ILLUSTRATED)
8THERMO-OVN (LOT 11, 12)
9BSCREW-UPR OVN ASSY 8-32 X 3/8“ PH BD HD (2)
9MIXER-AIR-TP BURNER LOT 7-11 (4)
11VALVE-TP BURNER (4)
