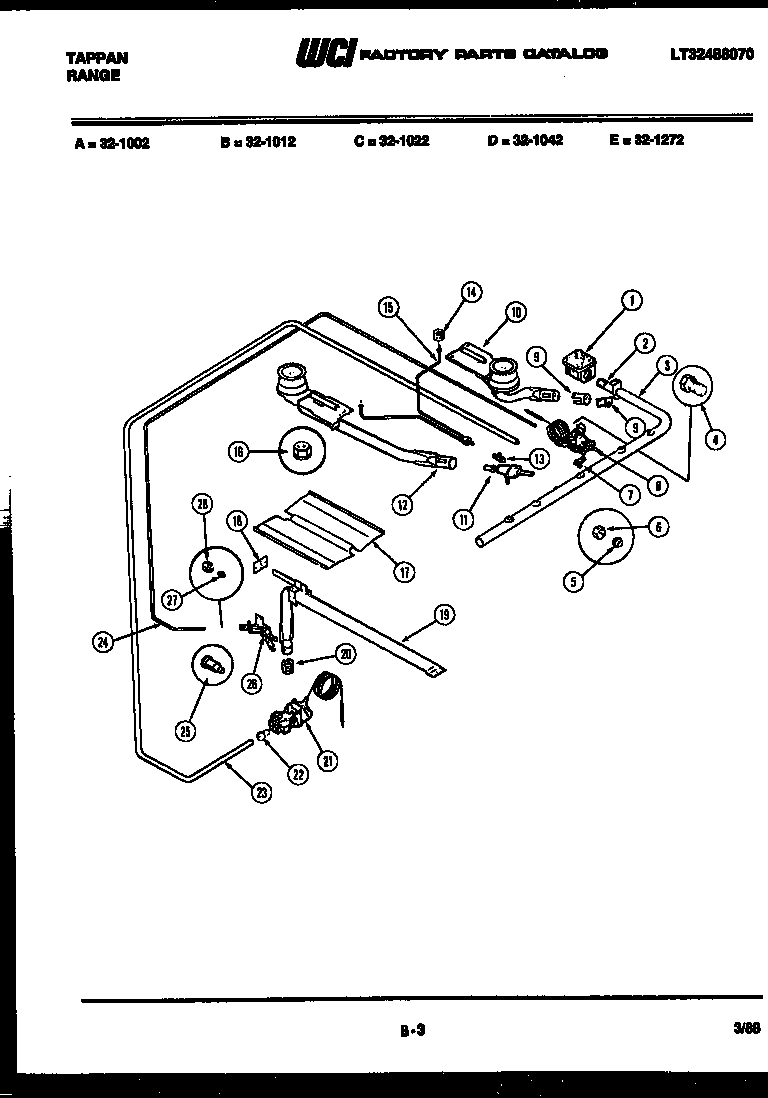

32-1002-66-07 10 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
13	WCI 244T039P01
14	WCI 124T010P01
15	TUBE-DUAL HARNESS TOP PILOT
16	5303013272 Frigidaire Oven Nut
17	BAFFLE-OVN BURNER
18	PLATE-BURNR MTG LOT 5-7, 12
20	MIXER-AIR-OVN BURNR
21A	SCREW-SAFETY VALVE MTG 8A X 2`` PH TR HD (2) (NON-ILLUSTRATED)
21	VALVE-OVN SAFETY
22	LOXIT FITTING-SAFETY VALVE 3/8`` (5/8-18 THD)
23	TUBE-OVN GAS SUPLY 3/8 X 55``
24	WCI 750T056P14
25	ORIFICE-PILOT .014 7 NAT. 11`` LP
26B	WCI 355T219S01
26	WCI 549T023P01
26A	WCI 636T097P01
27	FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2)
28	COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUBE 3/16`` (2)
