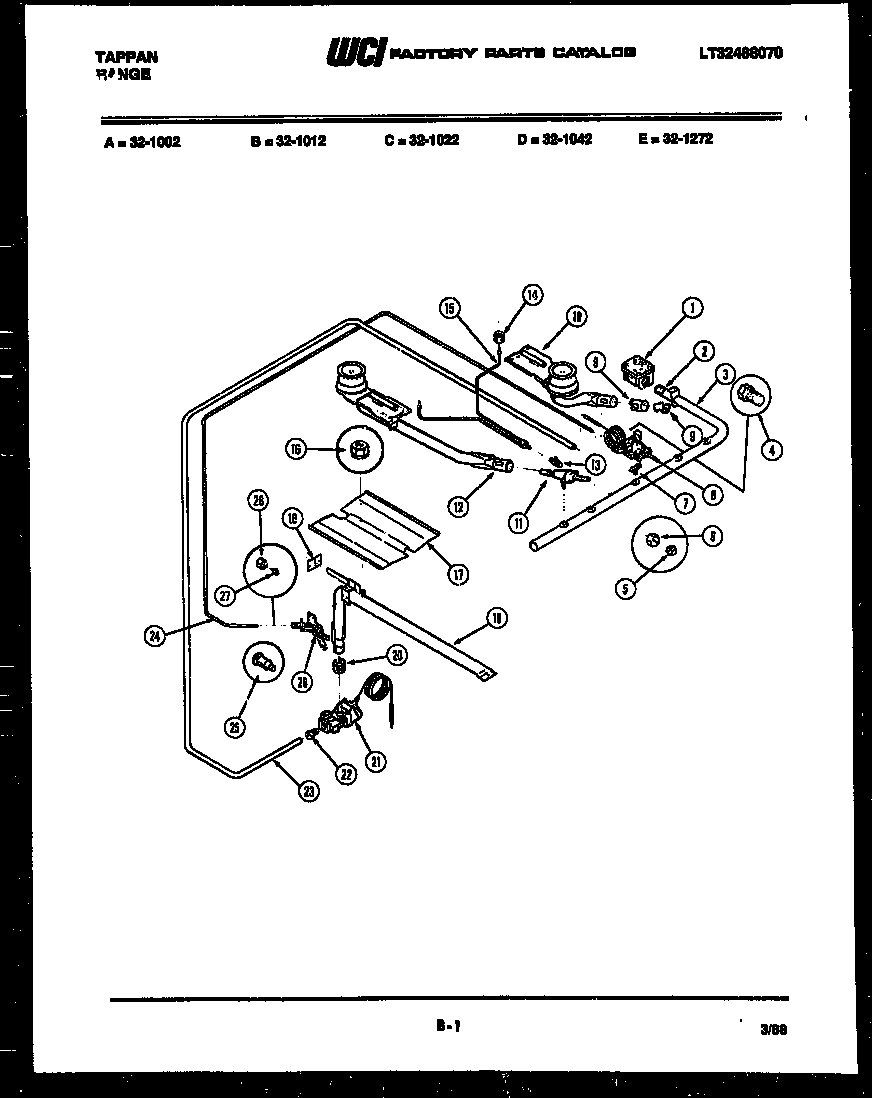

32-1002-66-09 09 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1CONTRL-PRESSURE REGULATOR
2WCI 008T276F04
3WCI 439T046P04
4LOXIT NUT-THERMO PILOT TUBE 3/16“ LOT 2-11
5WCI T7-205-2
5FERRULE 3/8“
6COMPRESSION NUT 3/8“
7WCI 003T039P01
8ASCREW-THERMO MTG 10-24 X 9/32“ HEX HD (2) (NON-ILLUSTRATED)
8THERMOSTAT-OVEN
9MIXER-AIR-TP BURNER LOT 7-11 (4)
9BSCREW-UPR OVN ASSY 8-32 X 3/8“ PH BD HD (2)
10BURNER-TOP-FRNT LOT 1 (2)
11VALVE-TP BURNER (4)
12BURNER-TOP-REAR LOT 1 (2)
