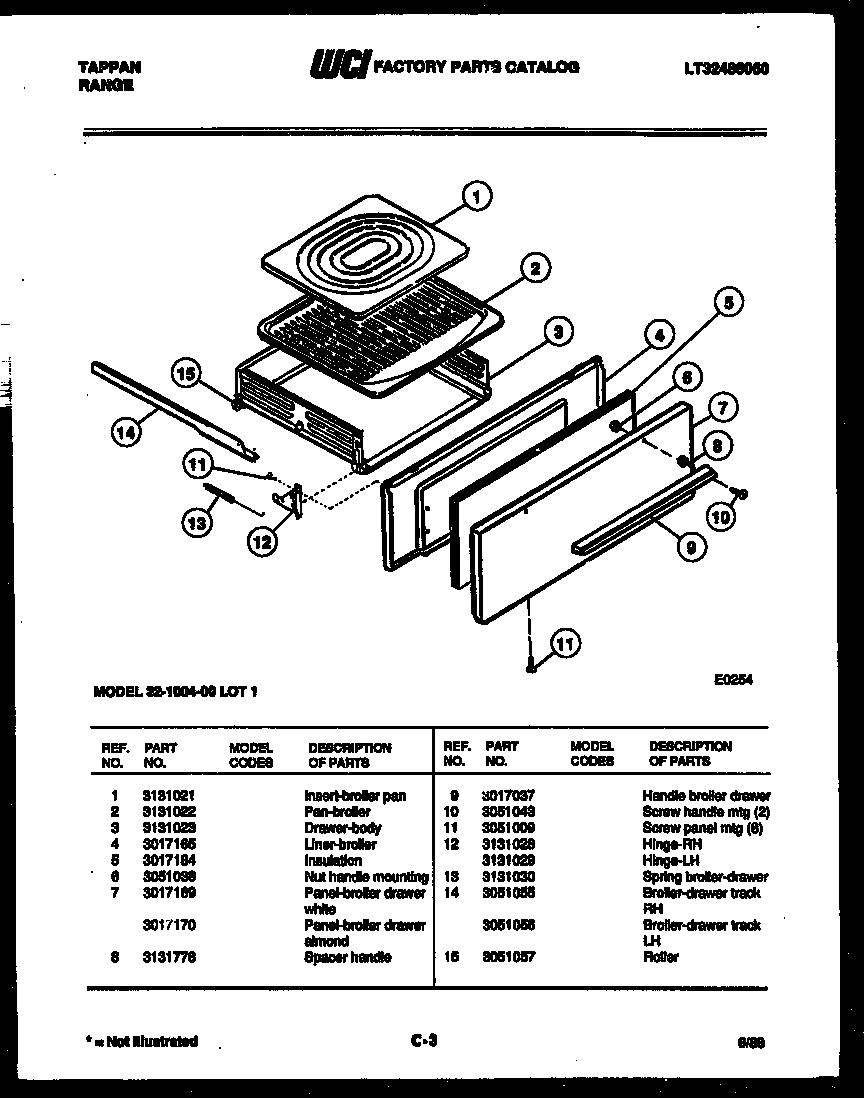

32-1004-00-01 07 – BROILER DRAWER PARTS

32-1004-00-01 07 – BROILER DRAWER PARTS

Written by

in

32-1004-00-01 07 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 3131021
25304442087 Frigidaire Range Wall Oven Broil Pan and Insert
3WCI 3131023
4WCI 3017165
5WCI 3017184
65303013272 Frigidaire Oven Nut
7PANEL – BLACK
8WCI 3131778
9WCI 3017037
105303292012 Frigidaire Oven Screw
11WCI 3051009
12HINGE – RH
12AHINGE – LH
13SPRING (2)
14TRACK RIGHT HAND
14ATRACK LEFT HAND
15WCI 3051057
