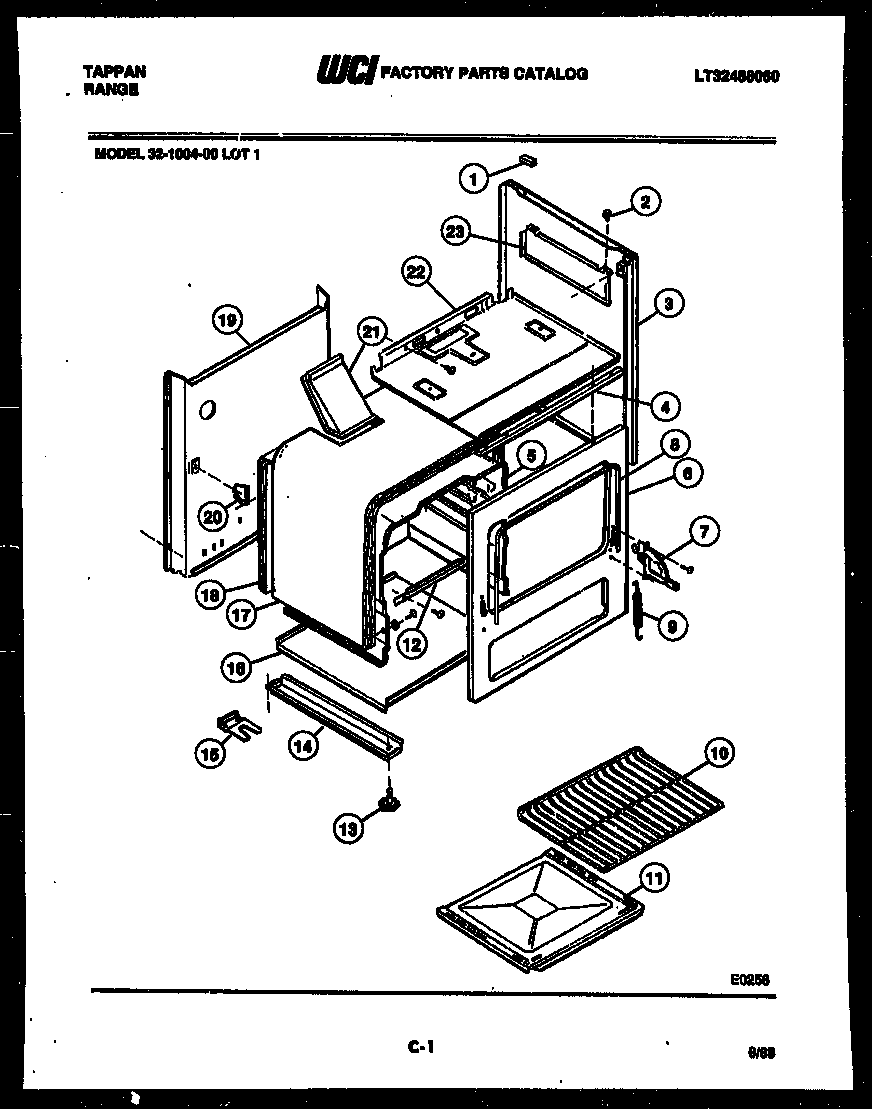

32-1004-23-01 06 – BODY PARTS

Products

Position	Product
*12381	CLIP,BODYSIDE
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE ALMOND (2)
4	SUPPORT CONTROL PNL
5C	LINER (BACK)
5	LINER RT SIDE
5B	LINER (TOP)
5A	LINER LT SIDE
6	WCI 3017048
7A	CAM-DOOR RIGHT HAND
7	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI 3009427
9	SPRING (2)
10	RACK-OVEN
11	LINER BTTM
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE-RAIL (2)
15	BRACKET-INSTALLATION (2)
16	WCI 3011645
17	WCI 3017171
18	WCI 3017172
19	WCI 3013340
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	WCI 3017174
23	WCI 3131053
23A	WCI 3131054
