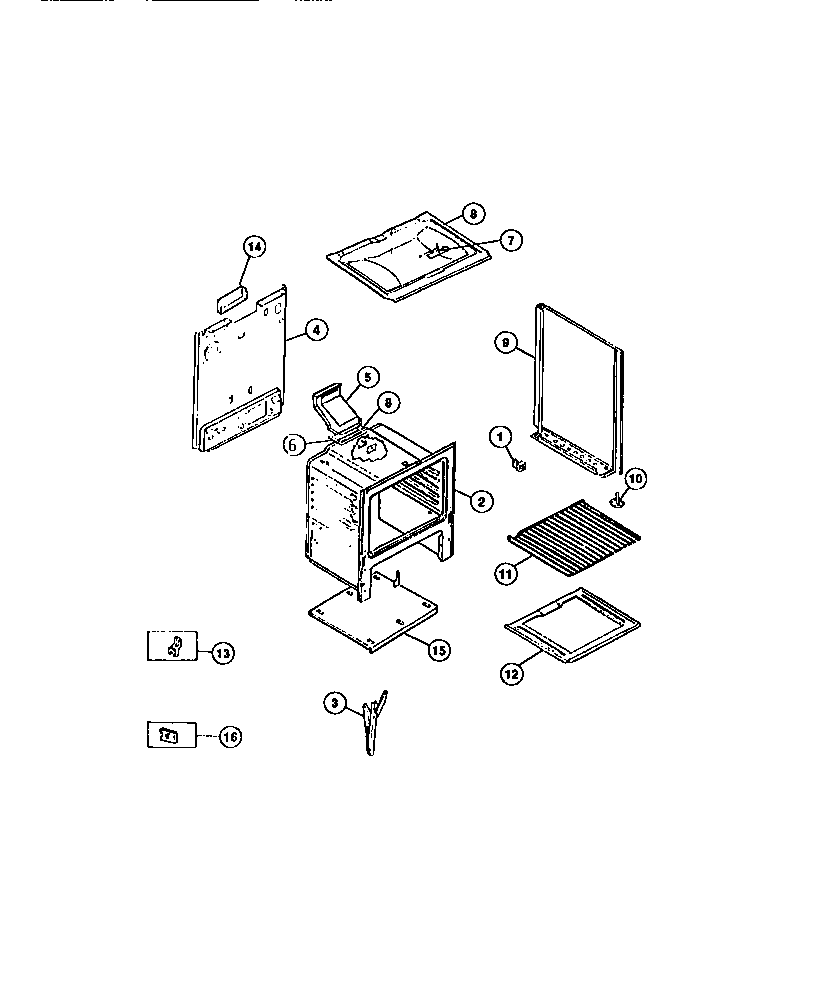

32-1007-00-04 07 – BASIC BODY

Products

Position	Product
*89728	316064600 Frigidaire Oven Support
*89729	316282700 Frigidaire Oven Screw
*89730	ANTI-TIP KIT (NOT ILLUSTRATED)
*89726	INSULATION, OVEN WRAPPER
*89727	WCI 3131246
1	SPACER-BODYSIDE, (8)
3	CHANL-DR HNG (2)
4	WCI 3131567
5	316204402 Frigidaire Oven Flue
6	316542102 Frigidaire Flue Gasket
7	WCI 3131101
8	WCI 3131185
9A	B/S-LH-(WHITE)
9	B/S-RH-(WHITE)
10	WCI 08010569
11	316067902 Frigidaire Oven Rack
12	BTTM-OVEN
13	5303284616 Frigidaire Range Bulb Clip Thermostat
14	COVER-VENT
15	WCI 3131180
16	3203010 Frigidaire Clip
