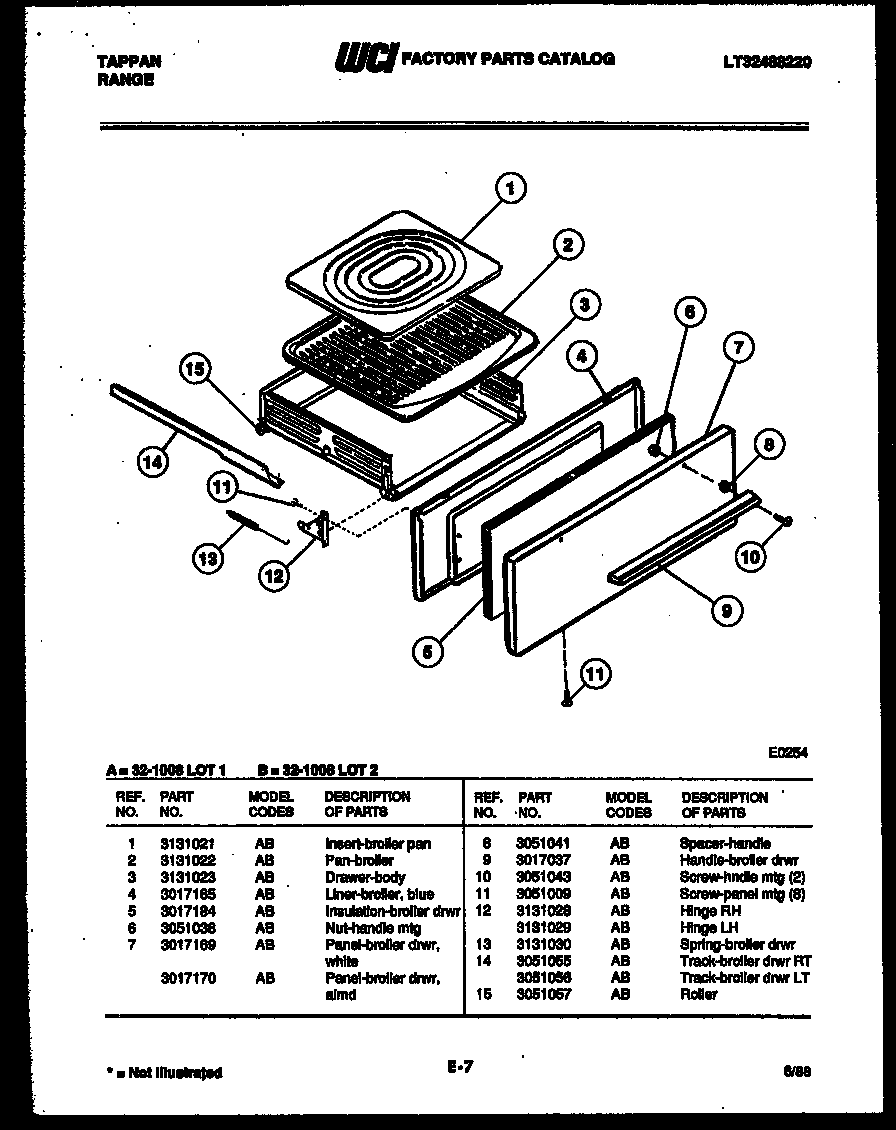

32-1008-00-01 03 – BROILER DRAWER PARTS

Written by

Products

Position	Product
1	WCI 3131021
2	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
3	WCI 3131023
4	WCI 3017165
5	WCI 3017184
6	5303013272 Frigidaire Oven Nut
7	PANEL – BLACK
8	SPACER HANDLE (2)
9	WCI 3017037
10	5303292012 Frigidaire Oven Screw
11	WCI 3051009
12	HINGE – RH
12A	HINGE – LH
13	SPRING (2)
14A	TRACK LEFT HAND
14	TRACK RIGHT HAND
15	WCI 3051057
