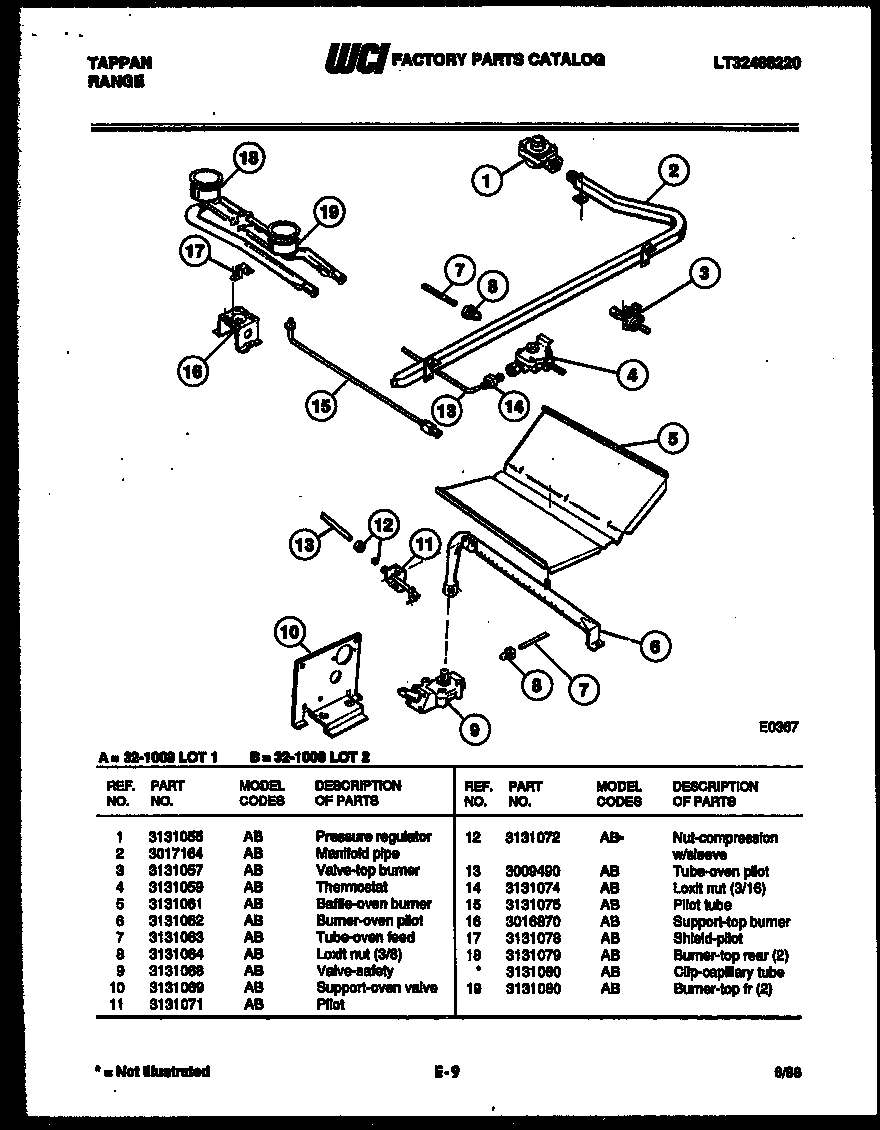

32-1008-23-01 05 – BURNER, MANIFOLD AND GAS CONTROL

32-1008-23-01 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-1008-23-01 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 3017164
3WCI 3131057
4WCI 3131059
5BAFFLE-OVEN BURNER
6WCI 3131062
7TUBE-OVEN FEED
8WCI 3131064
9WCI 3131068
10SUPPORT-OVEN SAFETY VALVE
11PILOT – OVEN
12NUT & SLEEVE
13TUBE OVEN PILOT
14WCI 3131074
15PILOT-TOP BURNER (RIGHT)
16SUPPORT – TOP BURNER
17STRAP – PILOT SHIELD
18BURNER – TOP REAR
18ACLIP CAPILLARY (2)
19BURNER – TOP FRONT
