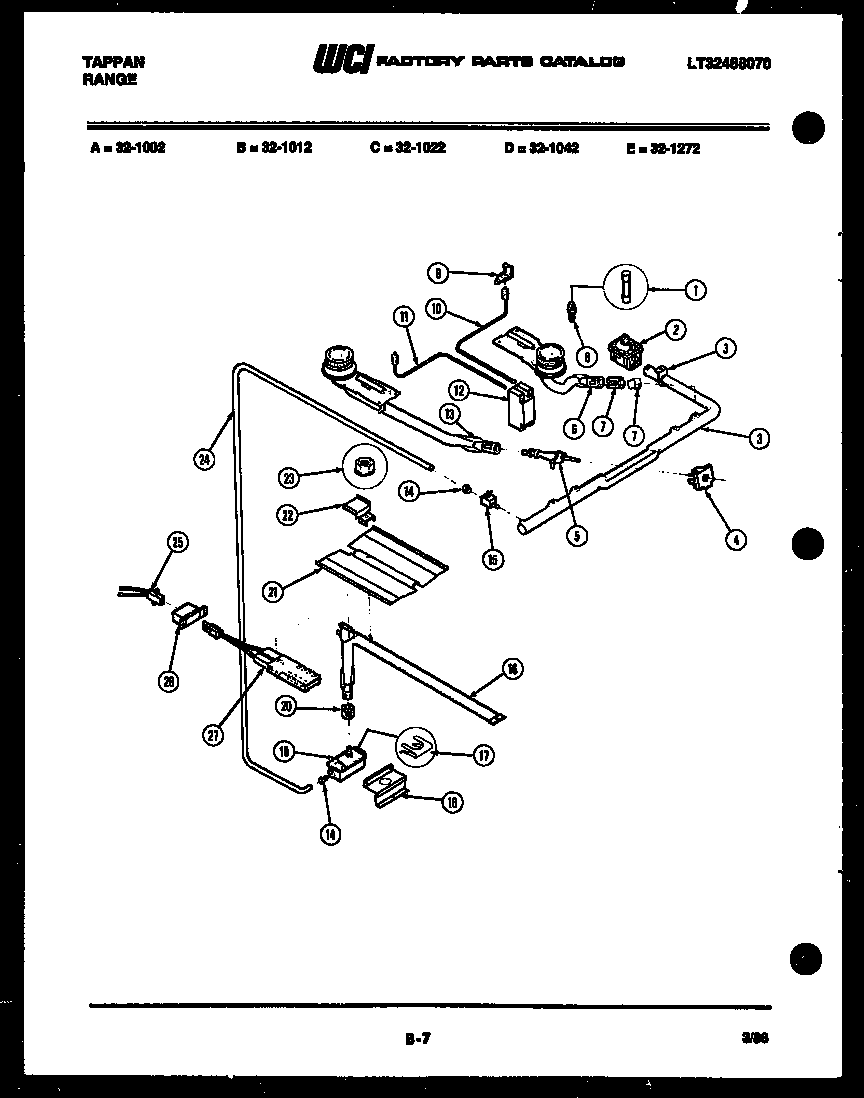

32-1012-66-10 12 – BURNER, MANIFOLD AND GAS CONTROL

32-1012-66-10 12 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-1012-66-10 12 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
12A5303017863 Frigidaire Screw
125303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
13BURNER-TOP-REAR LOT 1 (2)
14WCI 247T079P01
15WCI 774T121P01
17FASTENER-VALVE MTG
18WCI 072T655F01
19WCI 774T117P04
20MIXER-AIR-OVN BURNR
21BAFFLE-OVN BURNER
235303013272 Frigidaire Oven Nut
24TUBE, OVEN SUPPLY
285303935066 Frigidaire Oven Flat Igniter 17" Leads
29WCI 079T025P13
30WCI 709T041P01
31COVER, SAFETY VALVE
