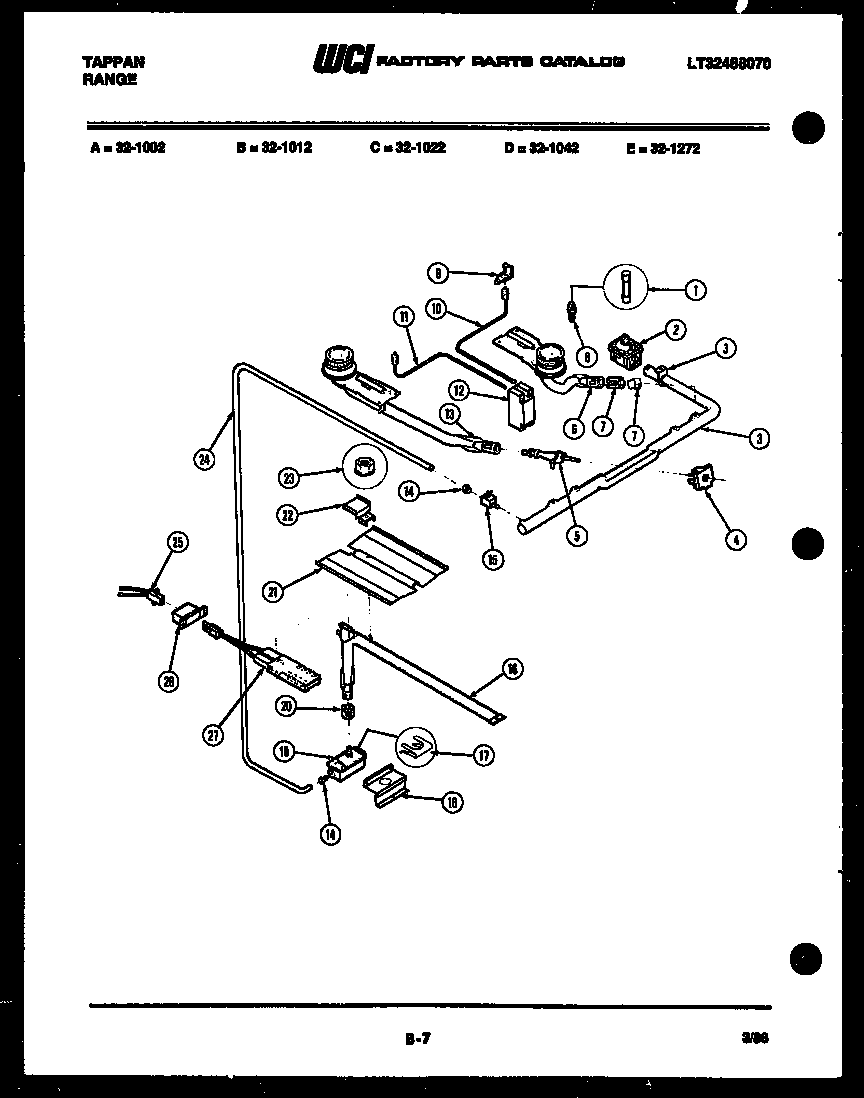

32-1012-66-13 12 – BURNER, MANIFOLD AND GAS CONTROL

32-1012-66-13 12 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-1012-66-13 12 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
12A5303017863 Frigidaire Screw
14WCI 247T079P01
15WCI 774T121P01
16WCI 079T025P09
17FASTENER-VALVE MTG
18WCI 072T655F01
19WCI 774T117P04
20MIXER-AIR-OVN BURNR
21BAFFLE-OVN BURNER
22SHIELD-OVEN BOTTOM
235303013272 Frigidaire Oven Nut
24TUBE, OVEN SUPPLY
26TUBE-IGNITER MTG
27IGNITER-OVN BURNER LOT 3
