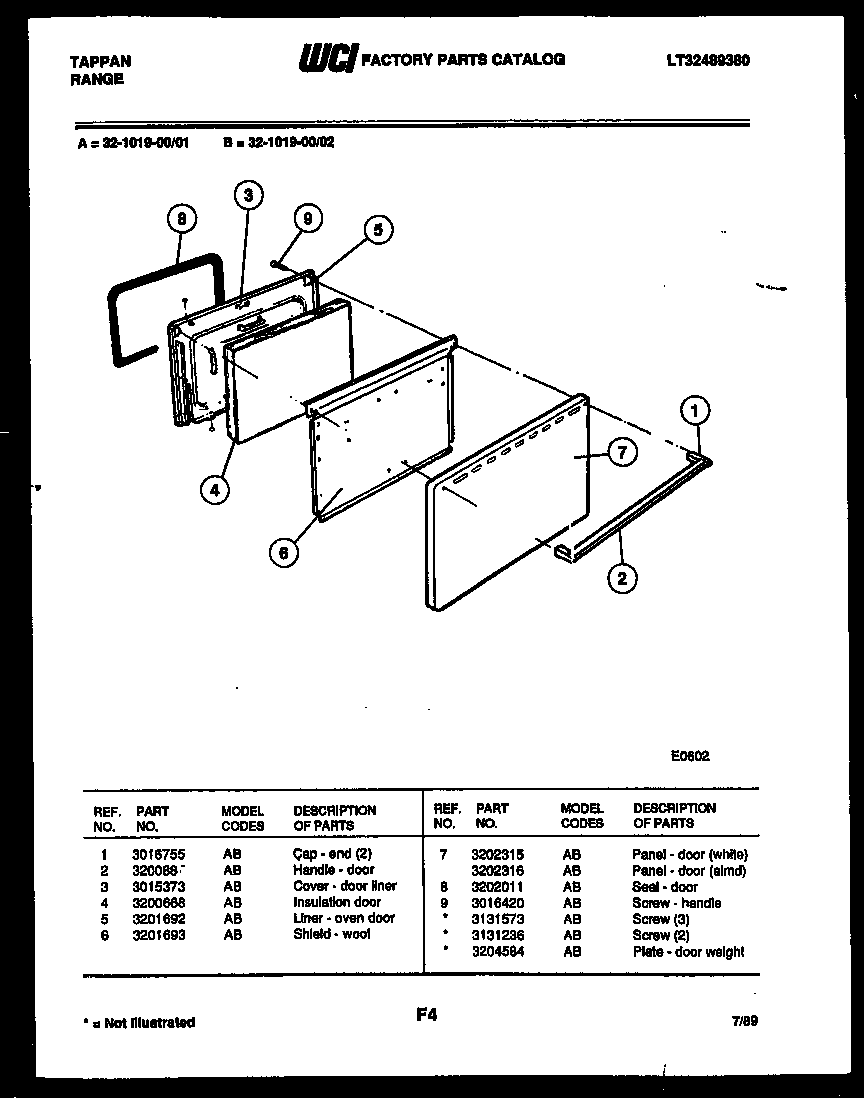

32-1019-00-02 04 – DOOR PARTS

Written by

Products

Position	Product
*27400	PLATE, DOOR WEIGHT (NON-ILLUSTRATED)
*27400	SCREW DOOR MTG
*27400	WCI 3131236
1	316137003 Frigidaire Range / Cooktop End Cap
2	HANDLE-OVEN DOOR
3	WCI 3015373
4	INSULATION-OVEN DOOR
5	WCI 3201692
6	WCI 3201693
7	PANEL, OVEN DOOR, WHITE
8	5303202011 Frigidaire Door Seal
9	SCREW – HANDLE (2)
