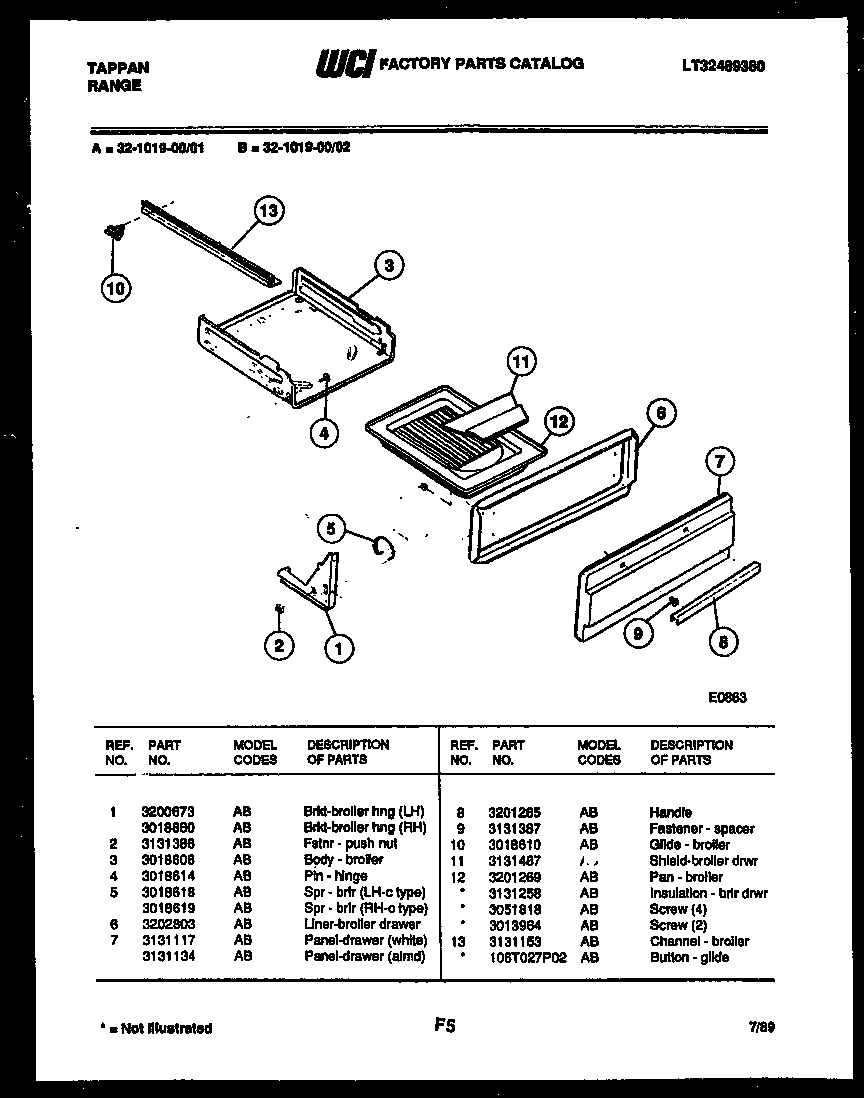

32-1019-00-02 05 – BROILER DRAWER PARTS

Products

Position	Product
*27401	BUTTON-GLIDE 27/64“ D.
1A	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILER, RH
5	WCI 3018618`
6	WCI 3202803
7	PNL-DRAWER (WHTE)
8	LP GAS KIT (1)
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	SHIELD-BROILR SUMP CHROME
12	WCI 3201269
12B	5303300265 Frigidaire Oven Screw
12C	SCREW-PNL ASSY (2)
12A	INSUL, BRL, DRWR (NON-ILLUSTRATED)
13	WCI 3131153
