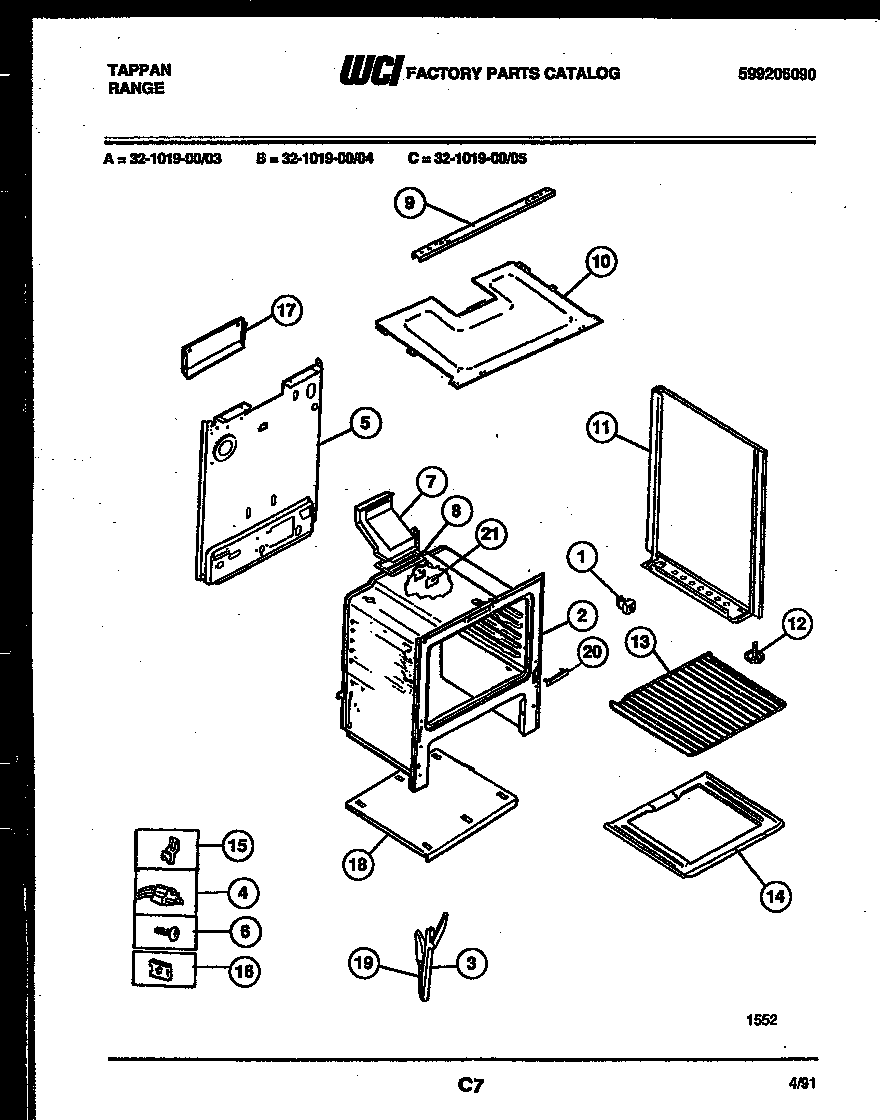

32-1019-00-05 07 – BODY PARTS

Products

PositionProduct
*48920WCI 3131660
*48919COVER-POWER CORD, (NON-ILLUSTRATED)
*48919WCI 08067961
*48919DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
45304515659 Frigidaire Oven Power Cord
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
9ABURNER BOX BOTTOM
11WCI 5303269545
11WCI 5303269543
11PNL-B/S-RH-WHITE
11PNL-B/S-LH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14BINSULATION, OVEN WRAPPER
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
155303284616 Frigidaire Range Bulb Clip Thermostat
163203010 Frigidaire Clip
17A316064600 Frigidaire Oven Support
17COVER-VENT
18WCI 5303270160
19WCI 3131575
20COVER-OVEN FRONT
20AANTI-TIP KIT (NOT ILLUSTRATED)
20BSHIELD-FLUE, (NON-ILLUSTRATED)
21COVER-IGNITOR
21WCI 3131192
