32-1019-00-07 07 – BODY PARTS

32-1019-00-07 07 – BODY PARTS

Written by

in

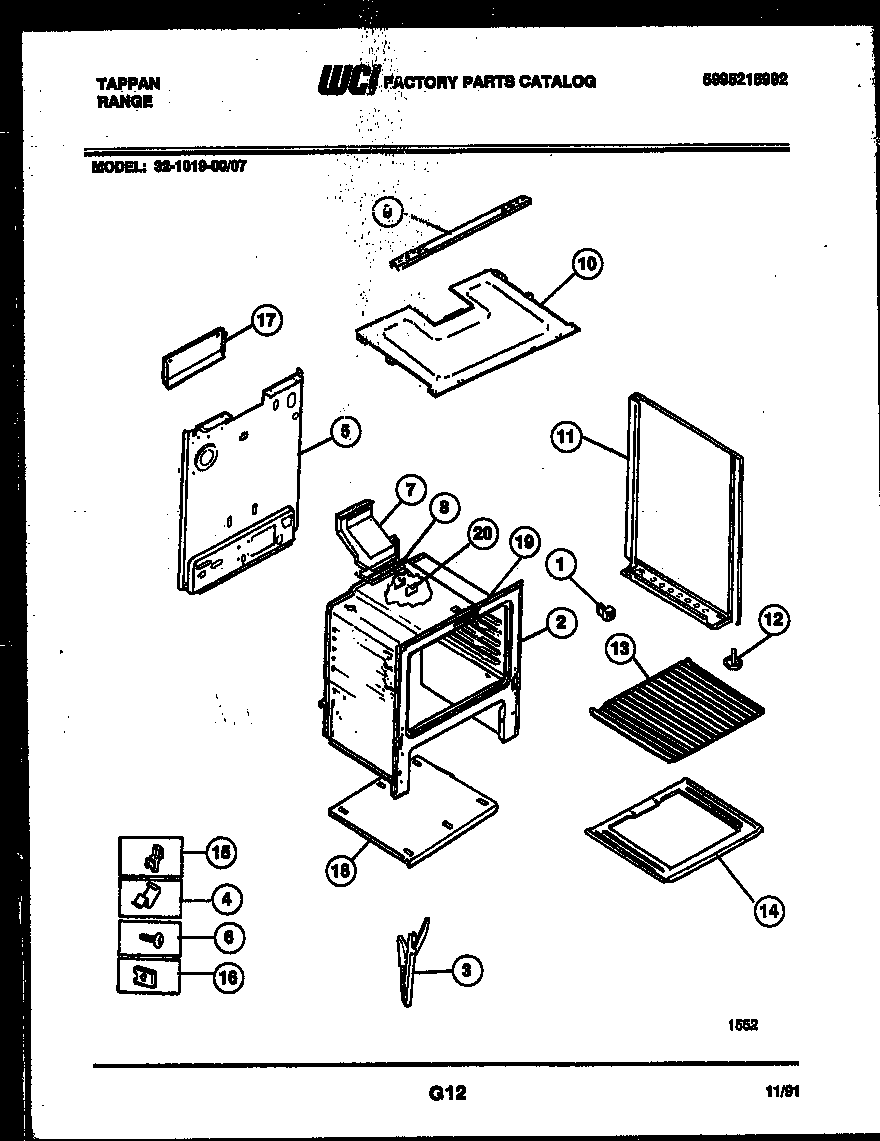

32-1019-00-07 07 – BODY PARTS

Products

PositionProduct
*63232DIAGRAM, WIRING (NOT FOR PURCHASE)
*63232WCI 3131192
*63232COVER-POWER CORD, (NON-ILLUSTRATED)
*63232WCI 3131660
*63232WCI 08067961
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
45304515659 Frigidaire Oven Power Cord
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
9ABURNER BOX BOTTOM
11APNL-B/S-LH-WHITE
11PNL-B/S-RH-WHITE
11WCI 5303269543
11AWCI 5303269545
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
14BINSULATION, OVEN WRAPPER
15WCI 08010556
163203010 Frigidaire Clip
17COVER-VENT
17A316064600 Frigidaire Oven Support
18WCI 5303270160
19AANTI-TIP KIT (NOT ILLUSTRATED)
19COVER-OVEN FRONT
19BSHIELD-FLUE, (NON-ILLUSTRATED)
20COVER-IGNITOR
