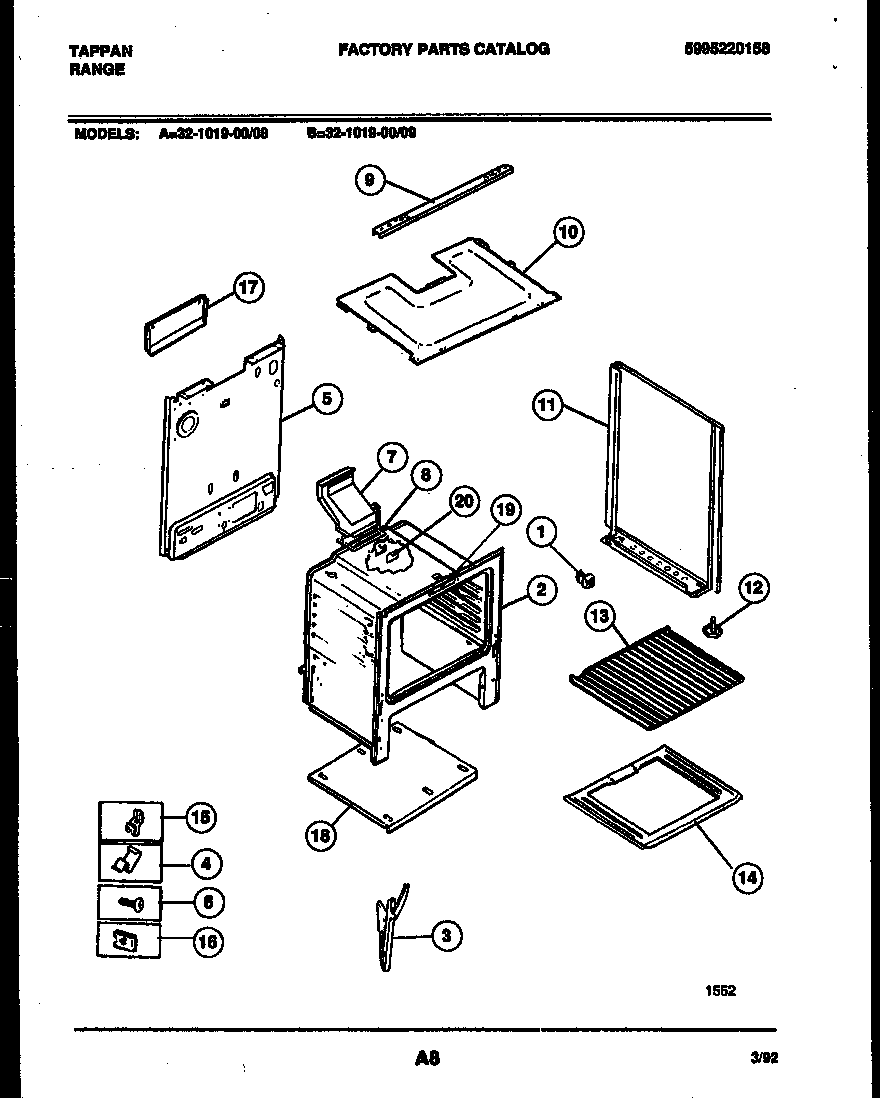

32-1019-00-08 07 – BODY PARTS

32-1019-00-08 07 – BODY PARTS

Written by

in

32-1019-00-08 07 – BODY PARTS

Products

PositionProduct
*67538WCI 3131192
*67538COVER-POWER CORD, (NON-ILLUSTRATED)
*67539WCI 3131660
*67539DIAGRAM, WIRING (NOT FOR PURCHASE)
*67538WCI 08067961
1SPACER-BODYSIDE, (8)
3Hinge,oven door ,(2)
45304515659 Frigidaire Oven Power Cord
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
9BURNER BOX BOTTOM
11APNL-B/S-LH-WHITE
11PNL-B/S-RH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BINSULATION, OVEN WRAPPER
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
15WCI 08010556
163203010 Frigidaire Clip
17A316064600 Frigidaire Oven Support
17COVER-VENT
18WCI 5303270160
19AANTI-TIP KIT (NOT ILLUSTRATED)
19COVER-OVEN FRONT
19BSHIELD-FLUE, (NON-ILLUSTRATED)
20COVER-IGNITOR
