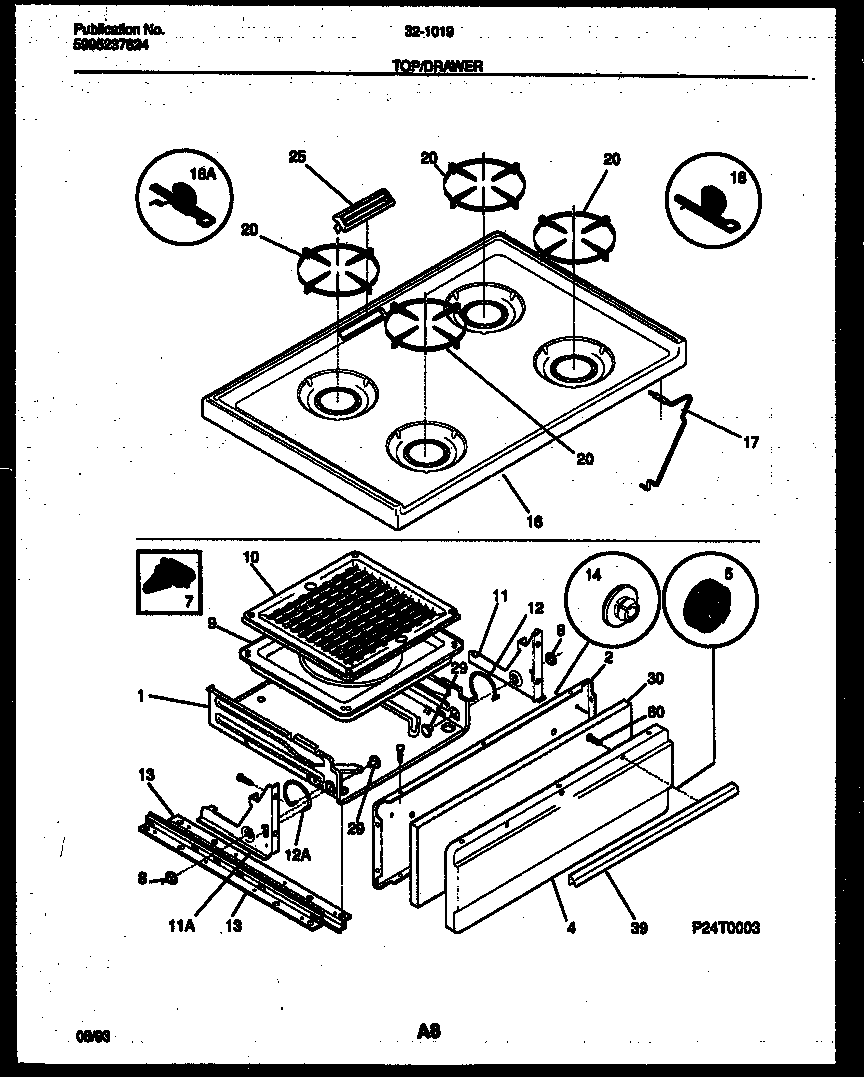

32-1019-23-10 05 – COOKTOP AND BROILER DRAWER PARTS

Products

Position	Product
1	DRAWER-BROILER
2	WCI 3202803
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL - BROILER ALMD
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11A	WCI 3200673
11	WCI 3018860
12A	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16	MAIN TOP-ALMD
17	ROD-MAIN SUPPORT (2)
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
20	316055800 Frigidaire Oven Grate
25	WCI 3131190
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	HANDLE-DRAWER, BRUSHED CHROME
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
