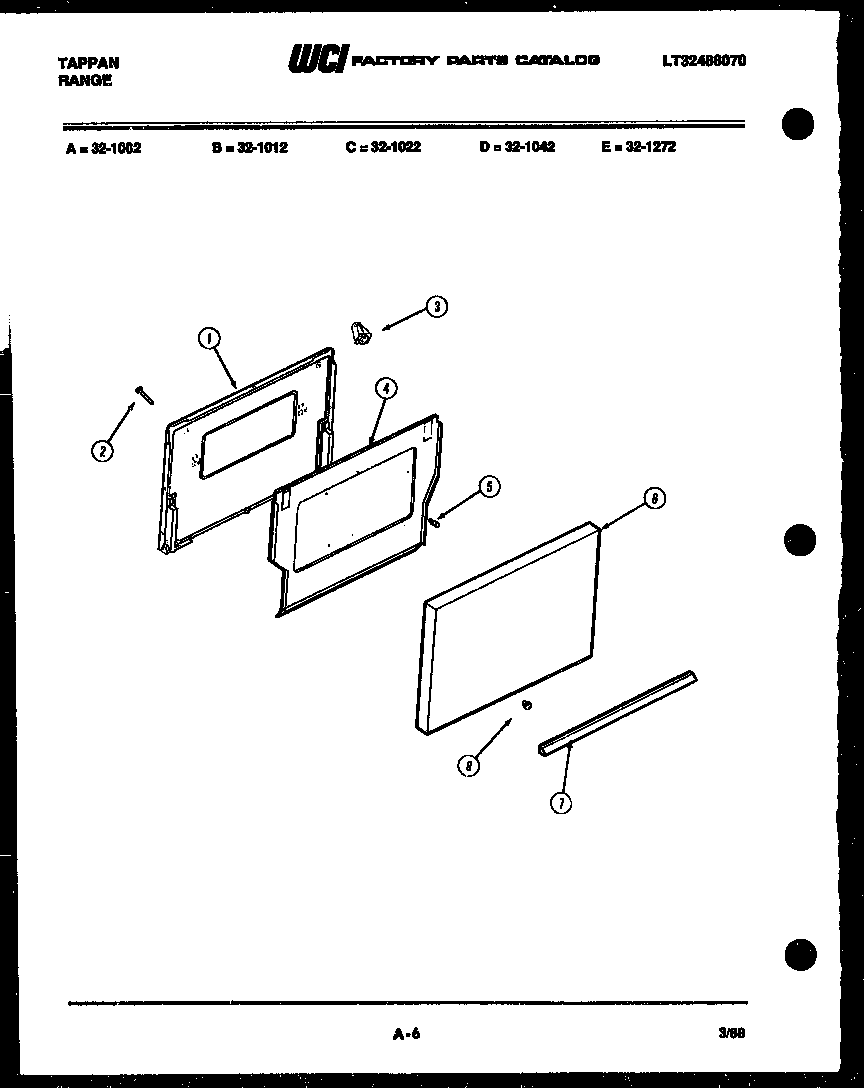

32-1022-00-07 05 – DOOR PARTS

Products

Position	Product
*21296	INSUL-WOOL 2 X 16 1/4 X 28“
*21297	SCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
1	LINER-DOOR LOT 1
1	LINER (BLUE GRAY PORC. W/ FLECK)
2A	WASHR-HNDL SCRW (2) (NON-ILLUSTRATED)
2	SCREW-HNDL MTG 10-24 X 2 3/4 FL WSH HD (LOT 2-12) (2)
3	FASTNR-NYLON PUSH-IN SPACR (5)
4	GLASS-INNER
5	SHIELD, WOOL
6	FASTNR-NYLN SPACER 3/4“ (3)
7	WCI 008T372F02
8	FASTNR-PUSH NUT 1/4“ D STUD
9	PANEL-OVN DR-WHTE LOT 5, 7-9
11	WCI 296T026P05
12	SPACER-OVN DR HNDL (2)
