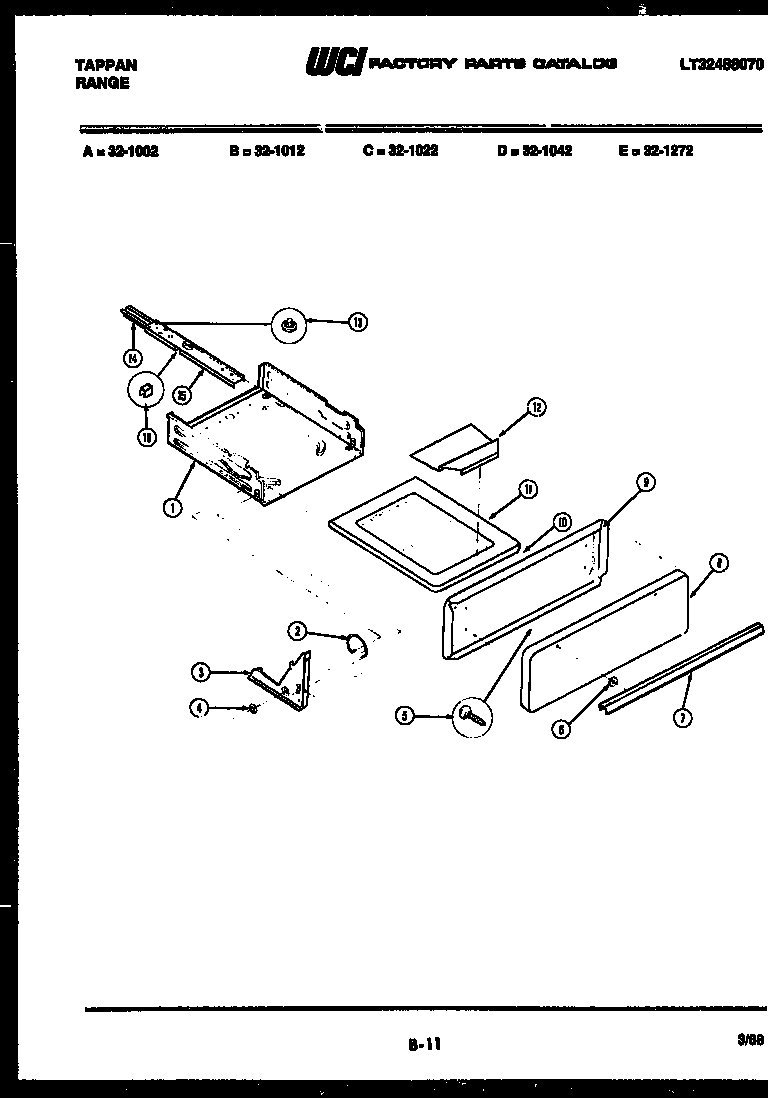

32-1022-57-01 14 – BROILER DRAWER PARTS

Products

Position	Product
*23390	SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
8A	INSULATION
9	WCI 381T077F04-89
10	PIN, HINGE (2)
11	WCI 539T005F01-89
13	BUTTON-GLIDE 27/64`` D.
14	CHANNEL-GLIDE-LOWER LOT 1
15	CHANL-GLIDE UPPER LOT 1-9
16	BUTTON-GUIDE
