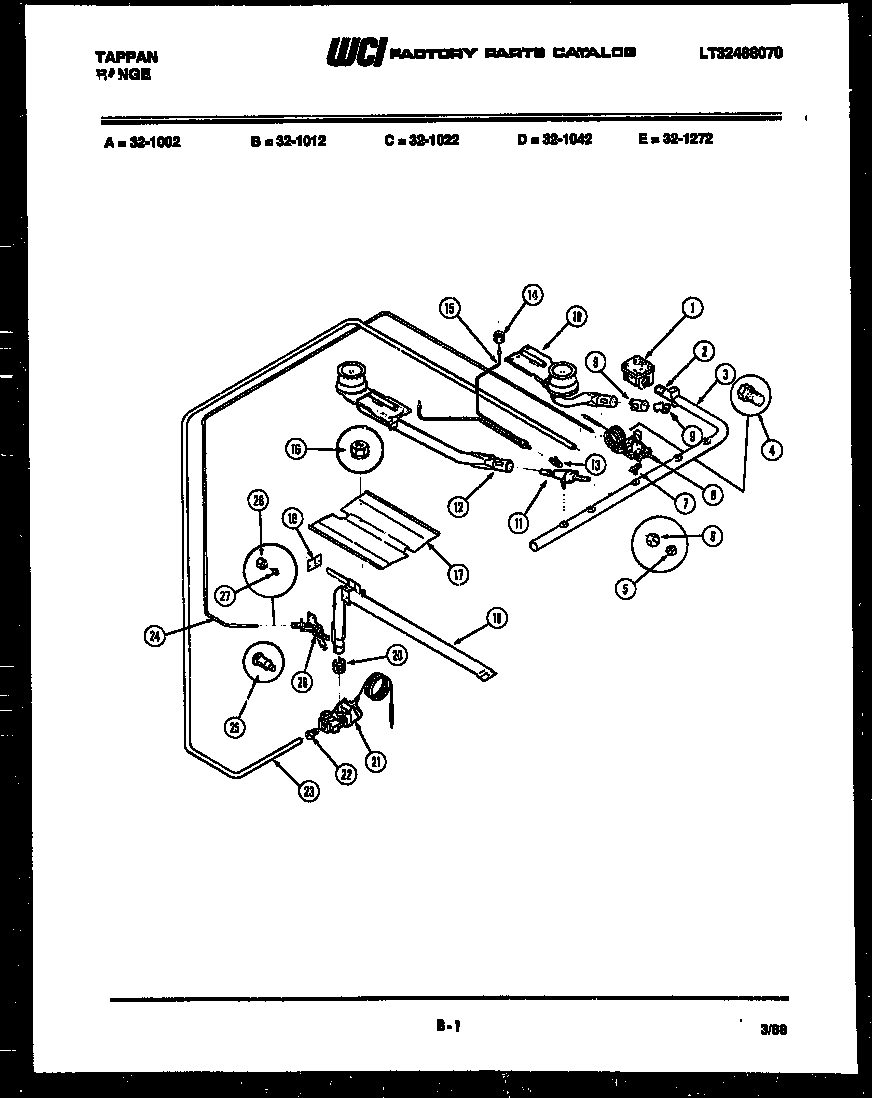

32-1022-57-08 09 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	CONTRL-PRESSURE REGULATOR
2	WCI 008T276F04
3	WCI 439T046P03
4	LOXIT NUT-THERMO PILOT TUBE 3/16“ LOT 2-11
5	FERRULE 3/8“
5	WCI T7-205-2
6	COMPRESSION NUT 3/8“
7	WCI 003T039P01
8	THERMOSTAT-OVEN
8A	SCREW-THERMO MTG 10-24 X 9/32“ HEX HD (2) (NON-ILLUSTRATED)
9B	SCREW-UPR OVN ASSY 8-32 X 3/8“ PH BD HD (2)
9	MIXER-AIR-TP BURNER LOT 7-11 (4)
10	BURNER-TOP-FRNT LOT 1 (2)
11	VALVE-TP BURNER (4)
12	BURNER-TOP-REAR LOT 1 (2)
