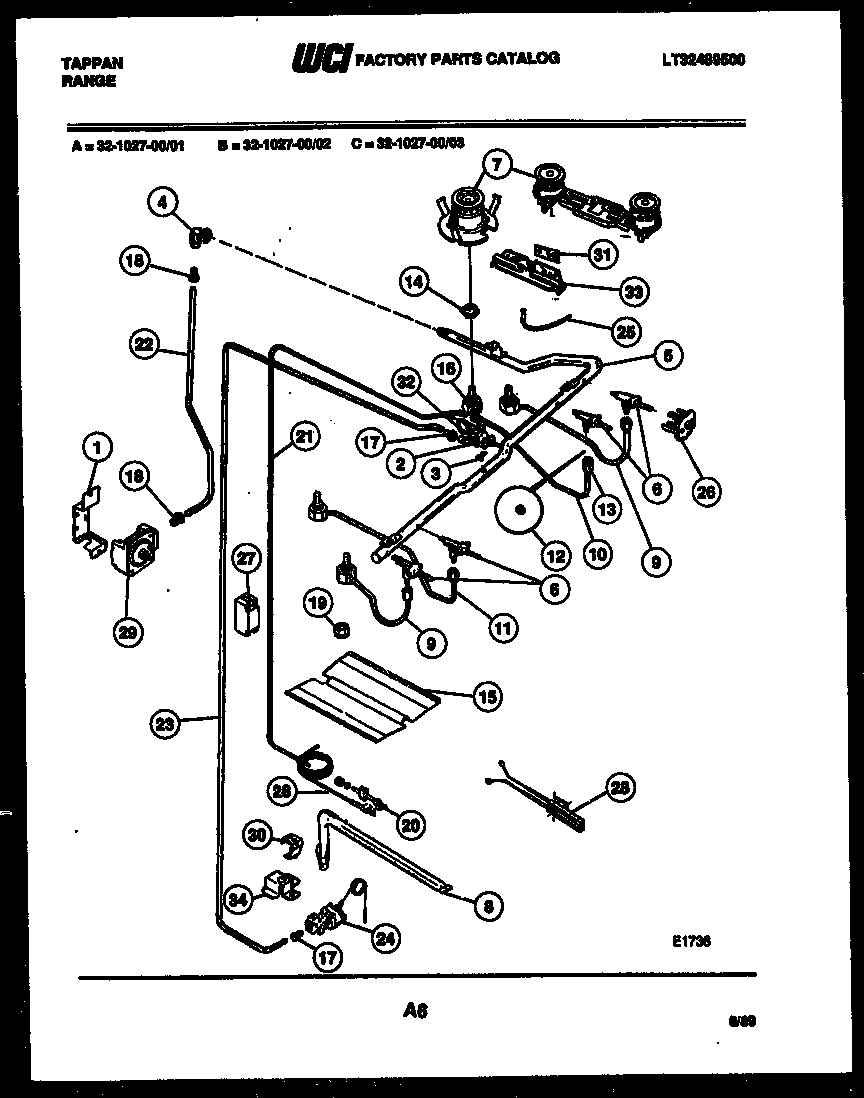

32-1027-23-02 06 – BURNER, MANIFOLD AND GAS CONTROL

32-1027-23-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-1027-23-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 072T850F01
2WCI 22T073P01
3WCI 003T039P01
4ELBOW 1/2 NP TO 9/16-24
5WCI 439T055P07
6WCI 774T135P01
7WCI 079T032S02
8WCI 079T036P03
9BURNER TUBE-RF & LF
10WCI 3011569
11WCI 3011570
12WCI 3012358
13NUT COMPRESSN (4)
14NUT, SPECIAL
15WCI 3131327
16WCI 3131404
17WCI 3131403
18FITTING-LOXIT (8)
195303013272 Frigidaire Oven Nut
20PILOT, OVEN
21TUBE, OVEN PILOT, 3/16
22TUBE-REGUL TEE
23WCI 750T085H13
24WCI 3131405
25IGNITER-TOP BURNR (4)
26SWITCH-IGNITER (4)
275303200332 Frigidaire Oven Module
28WCI 3131604
29CONTROL, REGULATOR
30WCI 3018603
31RETAINER ELECTROS
32WCI 695T220P01
33AWCI 3051420
33WCI 136T355W03
