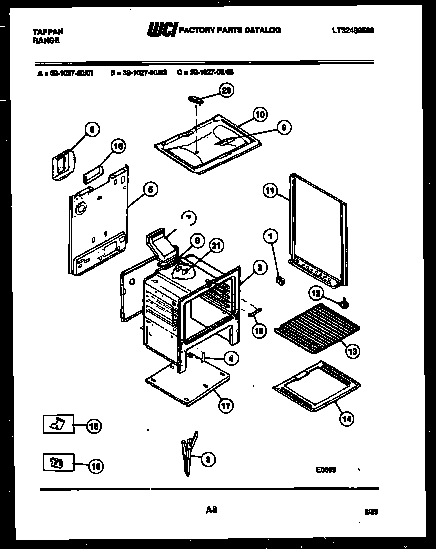

32-1027-23-03 07 – BODY PARTS

Products

Position	Product
*15373	5304515659 Frigidaire Oven Power Cord
*15373	COVER-POWER CORD, (NON-ILLUSTRATED)
*15373	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3131567
6	WCI 3131660
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	WCI 3131101
10	WCI 3131185
11	PNL B/S-LH (ALMOND)
11A	PNL B/S-RH (ALMOND)
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14A	INSULATION, OVEN WRAPPER
14B	WCI 3131246
14	BTTM-OVEN
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16	COVER-VENT
16A	316064600 Frigidaire Oven Support
17	WCI 3131180
18B	316282700 Frigidaire Oven Screw
18	3203010 Frigidaire Clip
18A	WCI 3131192
19	COVER-BURNER BOX
20	WCI 3015371
21	COVER-IGNITOR
