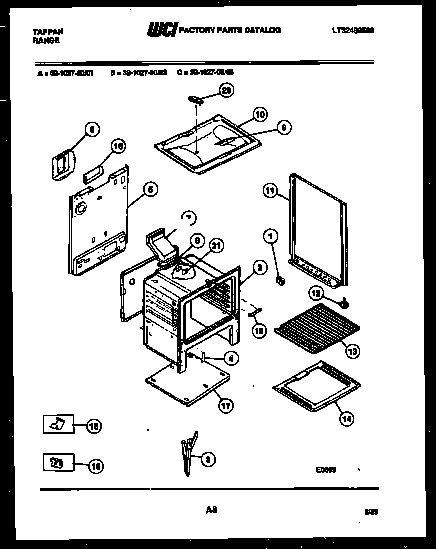

32-1027-66-02 07 – BODY PARTS

Products

Position	Product
*15373	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
*15373	5304515659 Frigidaire Oven Power Cord
*15373	COVER-POWER CORD, (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3131567
6	WCI 3131660
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	WCI 3131101
10	WCI 3131185
11A	PNL. B/S (LH WEAT)
11	PNL. B/S (RH WEAT)
12	WCI 636M004P01
13	316067902 Frigidaire Oven Rack
14	BTTM-OVEN
14B	WCI 3131246
14A	INSULATION, OVEN WRAPPER
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16A	316064600 Frigidaire Oven Support
16	COVER-VENT
17	WCI 3131180
18A	WCI 3131192
18	3203010 Frigidaire Clip
18B	316282700 Frigidaire Oven Screw
19	COVER-BURNER BOX
20	WCI 3015371
21	COVER-IGNITOR
