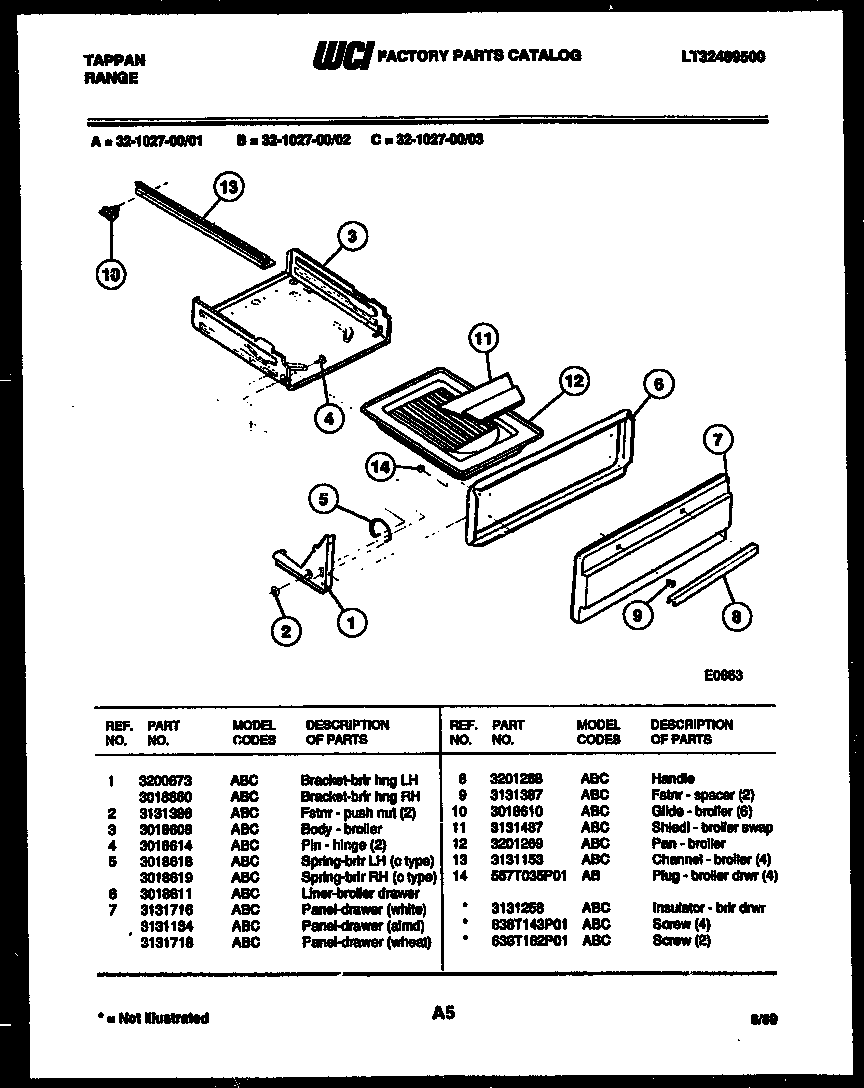

32-1027-66-03 05 – BROILER DRAWER PARTS

Products

Position	Product
*15362	5303300265 Frigidaire Oven Screw
*15363	SCREW PNL ASSY (2)
*15362	INSUL, BRL, DRWR (NON-ILLUSTRATED)
1A	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILER, RH
5	WCI 3018618`
6	LINER - BROILER DRWR
7	PANEL BROILR (WHEAT)
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	SHIELD-BROILR SUMP CHROME
12	WCI 3201269
13	WCI 3131153
14	WCI 557T035P01
