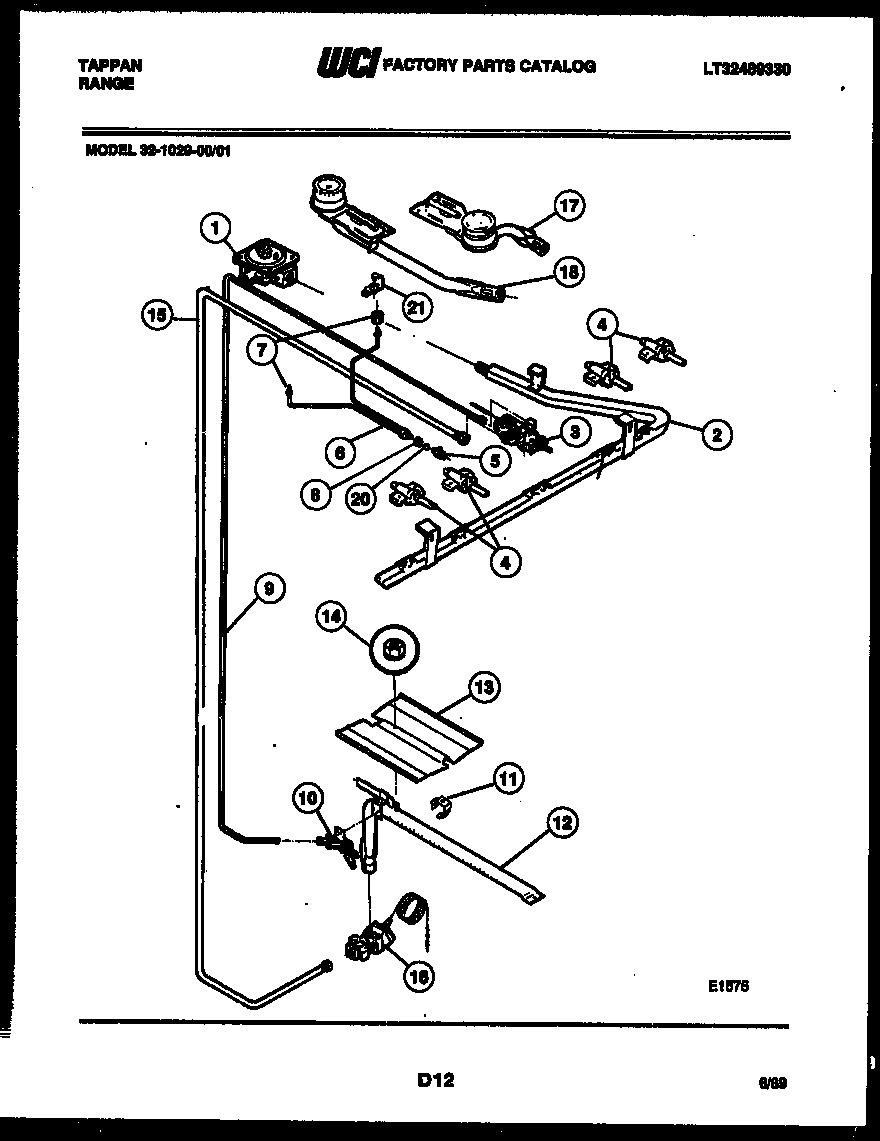

32-1029-00-01 07 – BURNER, MANIFOLD AND GAS CONTROL

32-1029-00-01 07 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-1029-00-01 07 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 3016997
2WCI 3204972
3WCI 3204974
4WCI 3202796
4ABOLT VALVE MTG
5WCI 3201274
6WCI 3201273
7CAP-TOP PILOT
8WCI 3201276
9Tubing`thermo/pilot `3/16 ,alum
10WCI 3203395
11WCI 3018603
12WCI 3203391
13WCI 3203265
145303013272 Frigidaire Oven Nut
15WCI 3202800
16WCI 3204583
175304506427 Frigidaire Oven Range Surface Burner (White)
185304506426 Frigidaire Oven Top Rear Burner
20WCI 3201277
21SHIELD-PILOT, STAINLESS STEEL, (2)
