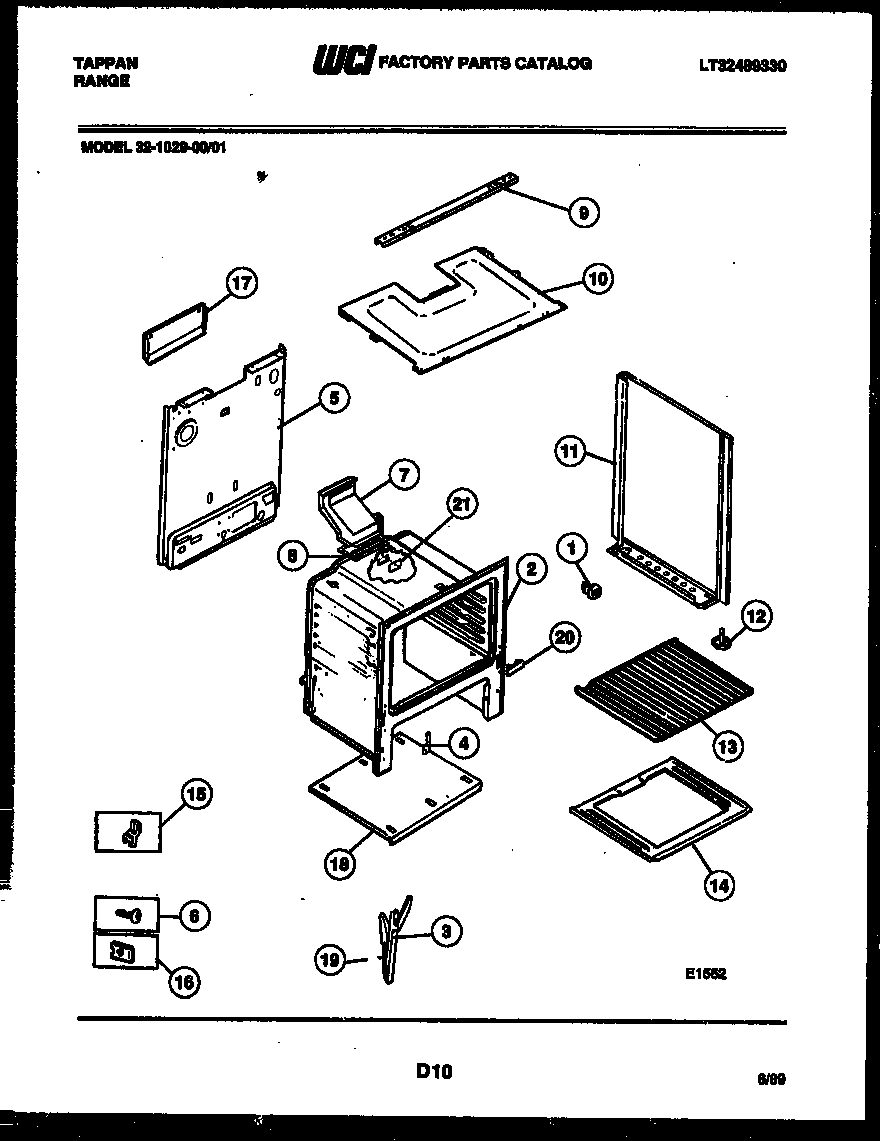

32-1029-23-01 06 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3203082
6	316282700 Frigidaire Oven Screw
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	WCI 3203394
10	BURNER BOX BOTTOM
11A	PNL B/S-RH (ALMOND)
11	PNL B/S-LH (ALMOND)
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14A	INSULATION, OVEN WRAPPER
14B	INSUL - OVEN BACK (NON-ILLUSTRATED)
14	BTTM-OVEN
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16	3203010 Frigidaire Clip
17	COVER-VENT
17A	316064600 Frigidaire Oven Support
18	WCI 3131180
19	WCI 3131575
20A	ANTI-TIP KIT (NOT ILLUSTRATED)
20	COVER-BURNER BOX
20B	SHIELD-FLUE, (NON-ILLUSTRATED)
21	COVER-IGNITOR
