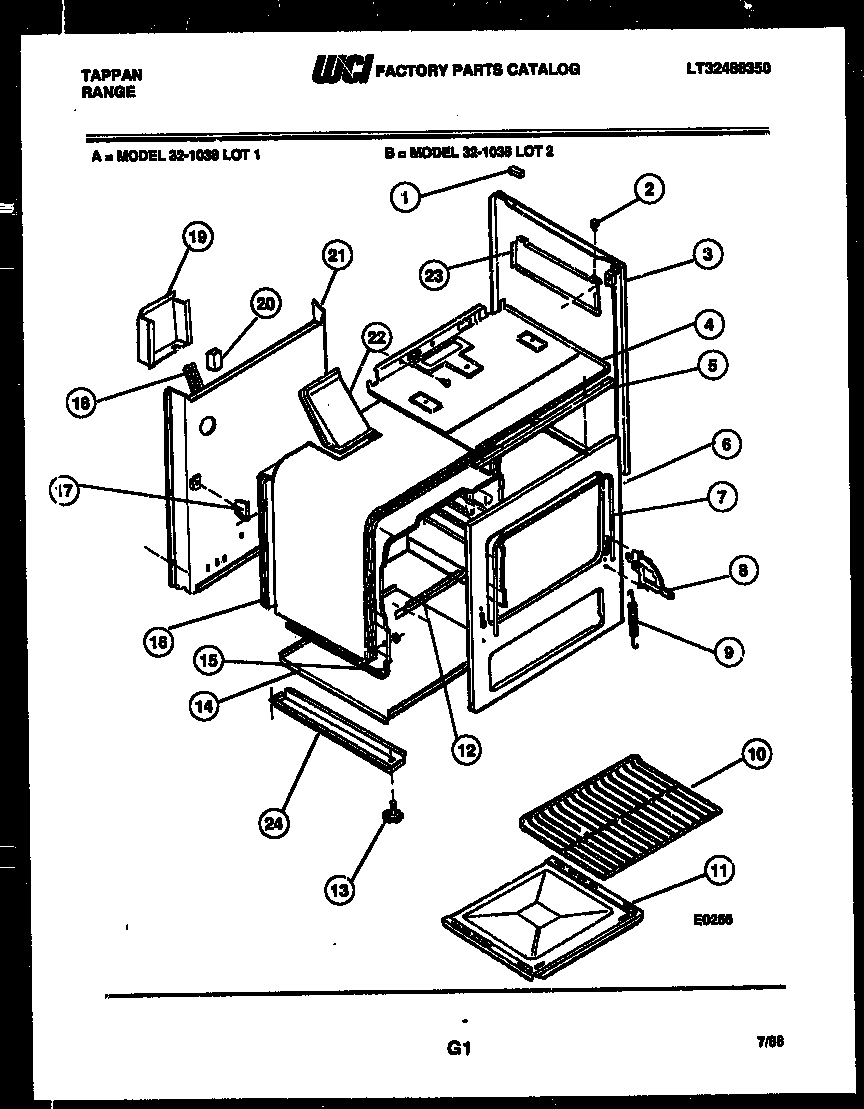

32-1038-00-02 03 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
4	WCI 3017174
5	SUPPORT CONTROL PNL
6	WCI 3017048
7	WCI 3009427
8A	CAM-DOOR RIGHT HAND
8	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING (2)
10	RACK-OVEN
11	LINER BTTM
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	WCI 3011645
15A	LINER RT SIDE
15	LINER LT SIDE
15C	LINER (BACK)
15B	LINER (TOP)
16	WCI 3017171
16A	WCI 3017172
17	SUPPORT-REAR OVN (2)
18	CHANNEL – MAIN WIRE
19	WCI 08008357
20	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
21	WCI 3013340
22	WCI 3017173
23A	WCI 3131054
23B	CLIP,BODYSIDE
23	WCI 3131053
24	BASE-RAIL (2)
