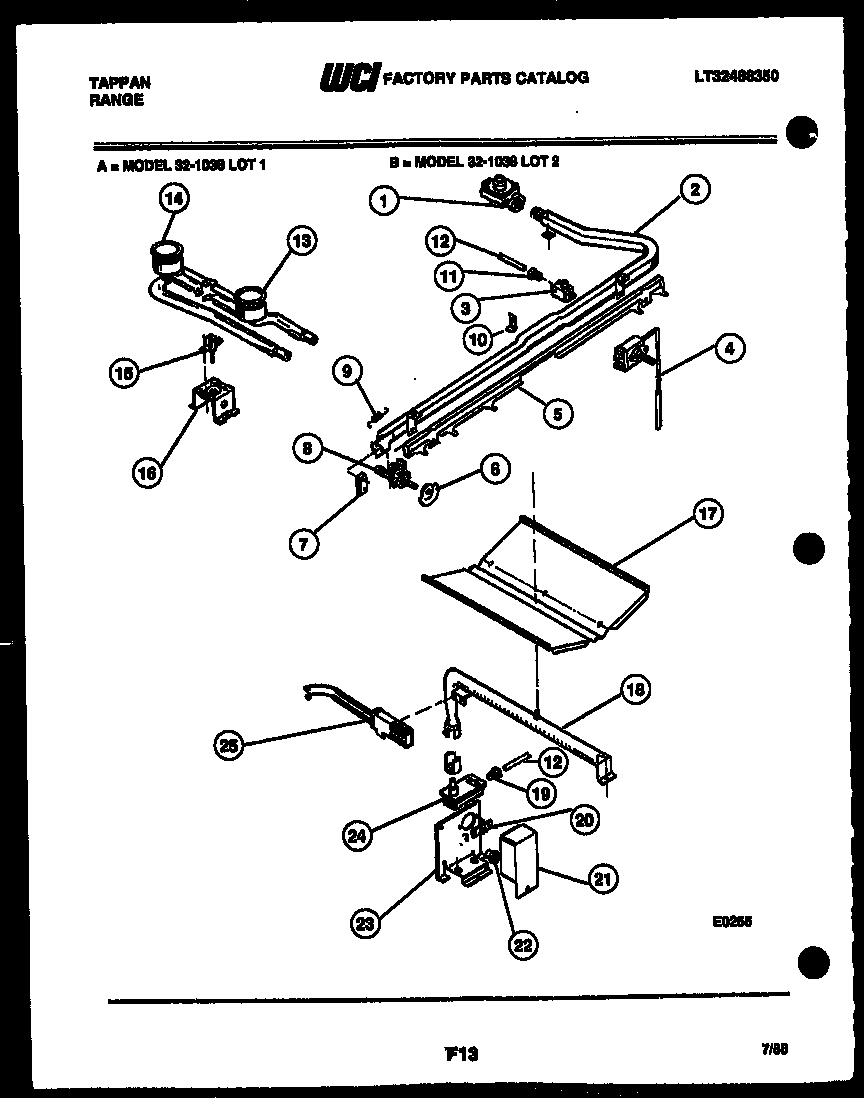

32-1038-23-02 02 – BURNER, MANIFOLD AND GAS CONTROL

32-1038-23-02 02 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-1038-23-02 02 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 08013906
3WCI 3131099
4WCI 3131083
5SLIDE BAR
6CAM TOP BURNER VALVE
7MICRO – SWITCH
8WCI 3131057
9WCI 3131096
10WCI 3051665
12TUBING-OVEN SPLY 3/8
13BURNER – TOP FRONT
14BURNER – TOP REAR
15IGNITER 36“
16SUPPORT – TOP BURNER
17BAFFLE-OVEN BURNER
18WCI 3131084
19LOXIT NUT
20TERMINAL BLOCK
21COVER – OVEN SAFETY VALVE
22WCI 3131051
23SUPPORT-OVEN SAFETY VALVE
24VALVE-SAFETY
255303935066 Frigidaire Oven Flat Igniter 17" Leads
