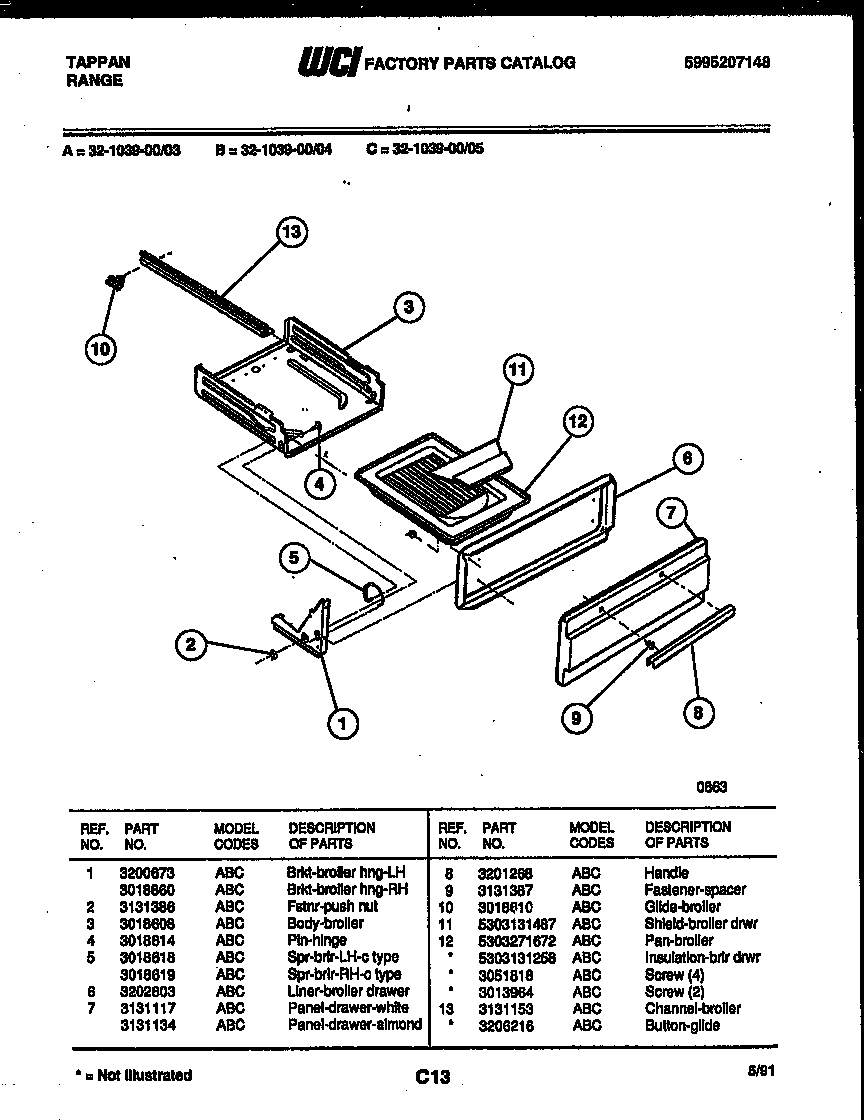

32-1039-00-04 04 – BROILER DRAWER PARTS

Products

Position	Product
*50613	WCI 3206216
1A	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5	WCI 3018618`
5A	SPRING-BROILER, RH
6	WCI 3202803
7	PANEL – BROILER ALMD
7	PNL-DRAWER (WHTE)
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	SHIELD-BROILER DRWR
12	WCI 5303271672
12A	INSULATION, BROILER DRAWER
12C	SCREW-PNL ASSY (2)
12B	5303300265 Frigidaire Oven Screw
13	WCI 3131153
