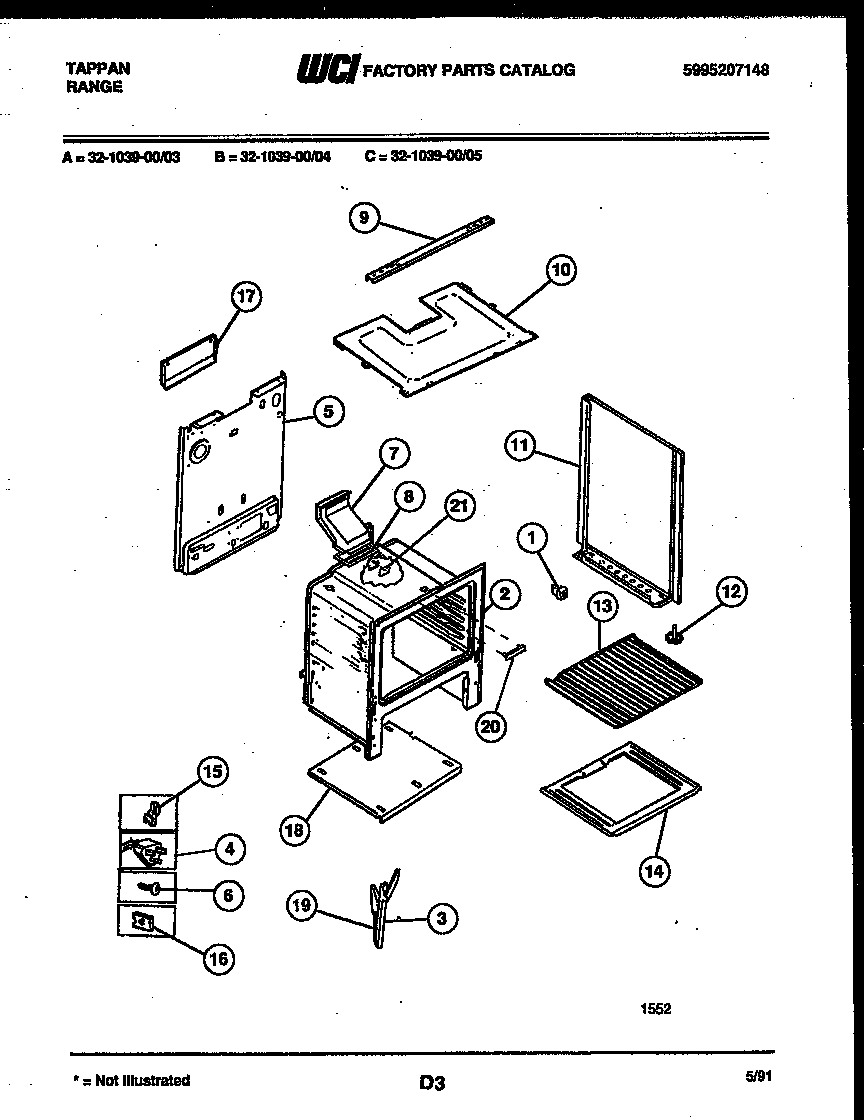

32-1039-00-04 07 – BODY PARTS

32-1039-00-04 07 – BODY PARTS

Written by

in

32-1039-00-04 07 – BODY PARTS

Products

PositionProduct
*50622WCI 08067961
*506223051218 Frigidaire Oven Plate
*50622COVER-POWER CORD, (NON-ILLUSTRATED)
*50623DIAGRAM, WIRING (NOT FOR PURCHASE)
*50622WCI 3131192
*50622WCI 3131660
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
45304515659 Frigidaire Oven Power Cord
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11APNL-B/S-LH-WHITE
11PNL-B/S-RH-WHITE
11WCI 5303269543
11AWCI 5303269545
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
14AINSULATION, OVEN WRAPPER
14BTTM-OVEN
15CLIP-THERMO BULB (2)
163203010 Frigidaire Clip
17A316064600 Frigidaire Oven Support
17COVER-VENT
18WCI 5303270160
19WCI 3131575
20COVER-OVEN FRONT
20BSHIELD-FLUE, (NON-ILLUSTRATED)
20AANTI-TIP KIT (NOT ILLUSTRATED)
21COVER-IGNITOR
