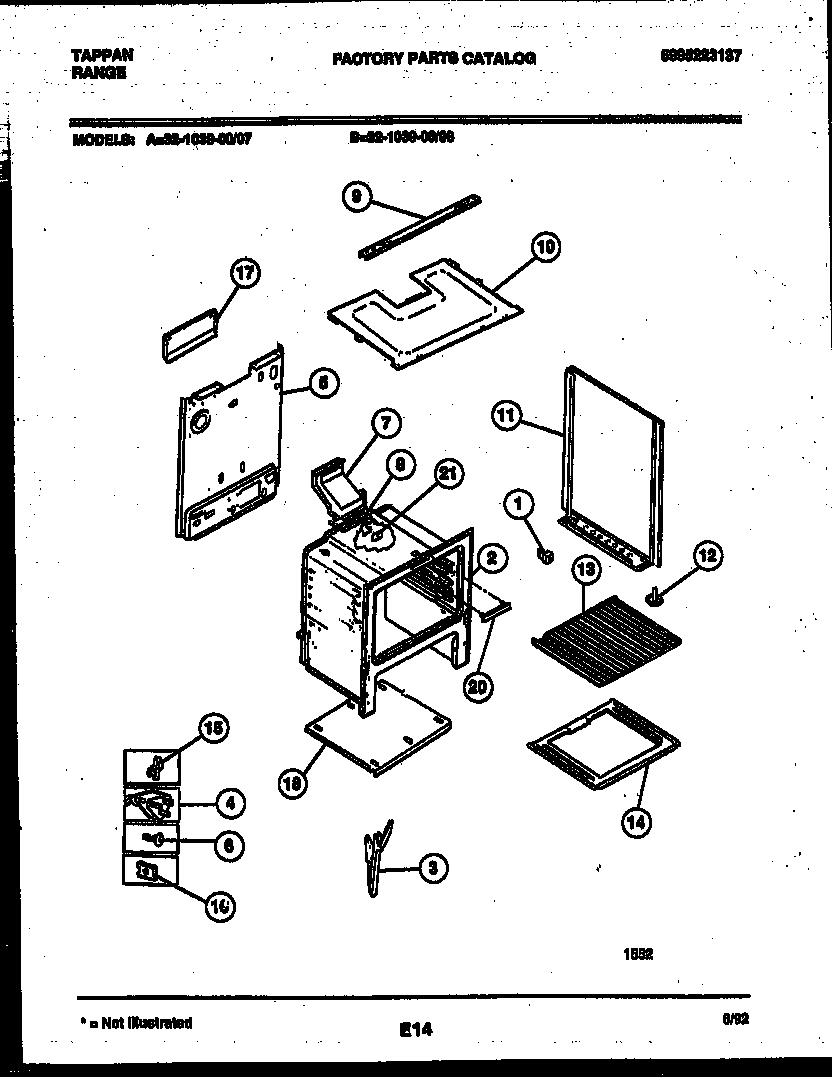

32-1039-00-07 07 – BODY PARTS

Products

PositionProduct
*72688WCI 3131660
*72689WCI 08010570
*72688DIAGRAM, WIRING (NOT FOR PURCHASE)
*72688COVER-POWER CORD, (NON-ILLUSTRATED)
*72688WCI 3131192
*726883051218 Frigidaire Oven Plate
*72688WCI 08067961
1SPACER-BODYSIDE, (8)
3Hinge,oven door ,(2)
45304515659 Frigidaire Oven Power Cord
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11PNL-B/S-LH-WHITE
11PNL-B/S-RH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14AINSULATION, OVEN WRAPPER
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
155303284616 Frigidaire Range Bulb Clip Thermostat
163203010 Frigidaire Clip
17A316064600 Frigidaire Oven Support
17COVER-VENT
18WCI 5303270160
20COVER-OVEN FRONT
20AANTI-TIP KIT (NOT ILLUSTRATED)
20BSHIELD-FLUE, (NON-ILLUSTRATED)
21COVER-IGNITOR
