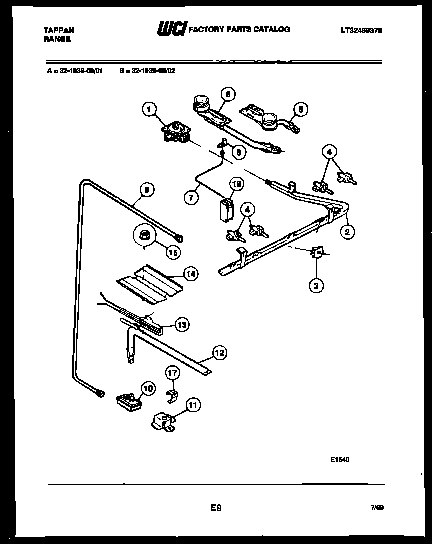

32-1039-23-02 06 – BURNER PARTS

Products

Position	Product
1	WCI 3203448
2	WCI 3205046
3	SWITCH - IGNITER (4)
4	WCI 3202796
4A	BOLT VALVE MTG
5	5304506427 Frigidaire Oven Range Surface Burner (White)
6	5304506426 Frigidaire Oven Top Rear Burner
7	IGNITER-TOP BURNER, BASE, (2)
8	3016993 Frigidaire Oven Retainer
9	WCI 3203458
10	3203459 Frigidaire Oven Range Dual Gas Safety Valve
11	BRKT.-VALVE
12	WCI 3131439
13	5303935066 Frigidaire Oven Flat Igniter 17" Leads
14	WCI 3203265
15	5303013272 Frigidaire Oven Nut
16	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17	WCI 3018603
