32-1039-23-03 07 – BODY PARTS

32-1039-23-03 07 – BODY PARTS

Written by

in

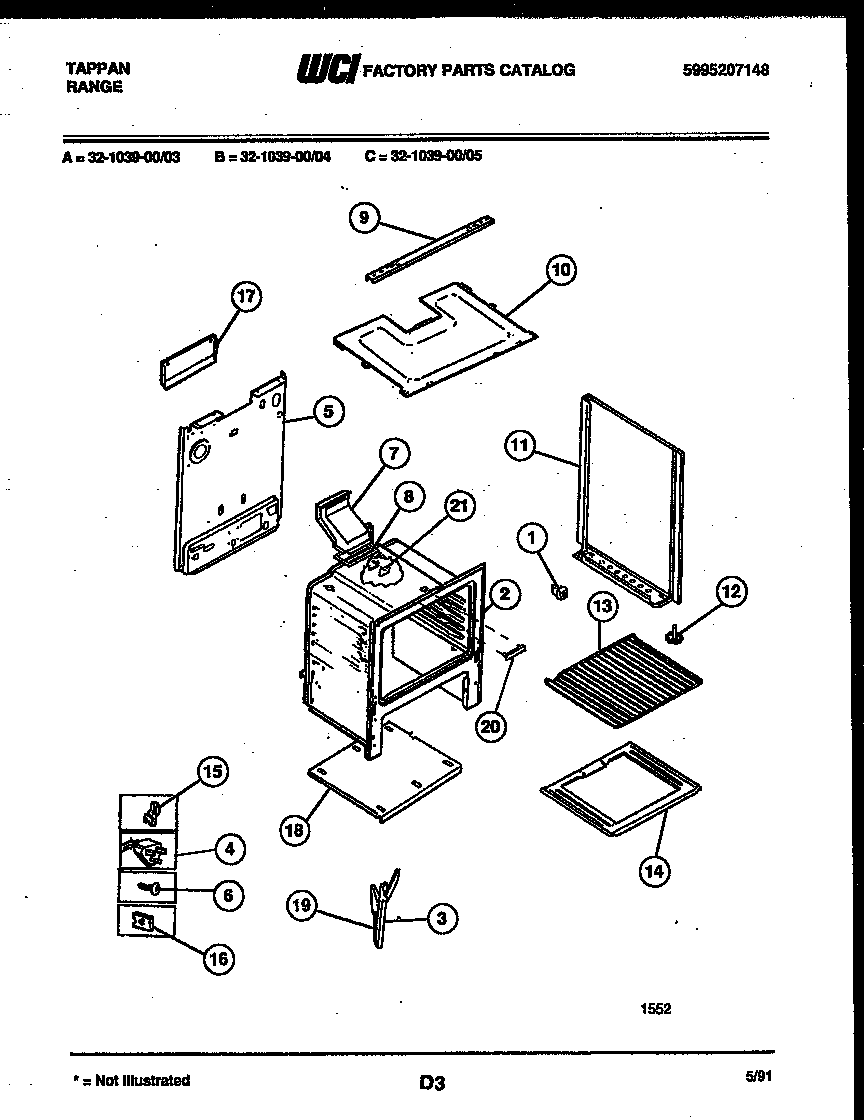

32-1039-23-03 07 – BODY PARTS

Products

PositionProduct
*50622WCI 3131192
*506223051218 Frigidaire Oven Plate
*50622WCI 3131660
*50622WCI 08067961
*50623DIAGRAM, WIRING (NOT FOR PURCHASE)
*50622COVER-POWER CORD, (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
45304515659 Frigidaire Oven Power Cord
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11AWCI 5303269545
11WCI 5303269543
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
14AINSULATION, OVEN WRAPPER
14BTTM-OVEN
155303284616 Frigidaire Range Bulb Clip Thermostat
163203010 Frigidaire Clip
17COVER-VENT
17A316064600 Frigidaire Oven Support
18WCI 5303270160
19WCI 3131575
20AANTI-TIP KIT (NOT ILLUSTRATED)
20COVER-OVEN FRONT
20BSHIELD-FLUE, (NON-ILLUSTRATED)
21COVER-IGNITOR
