32-1042-32-05 10 – BURNER, MANIFOLD AND GAS CONTROL

32-1042-32-05 10 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

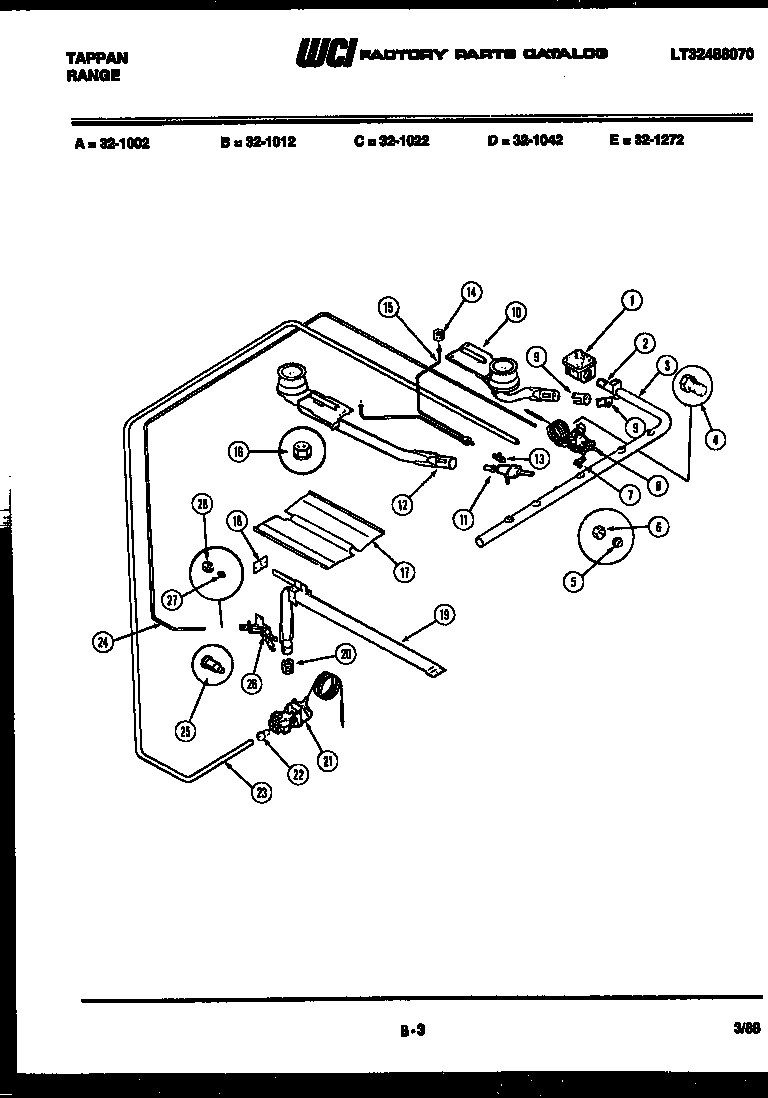

32-1042-32-05 10 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
13WCI 244T039P01
14WCI 124T010P01
15TUBE-DUAL HARNESS TOP PILOT
165303013272 Frigidaire Oven Nut
17BAFFLE-OVN BURNER
18WCI 554T327F01
19WCI 079T025P01
20MIXER-AIR-OVN BURNR
21VALVE-OVN SAFETY
21ASCREW-SAFETY VALVE MTG 8A X 2“ PH TR HD (2) (NON-ILLUSTRATED)
22LOXIT FITTING-SAFETY VALVE 3/8“ (5/8-18 THD)
23TUBE-OVN GAS SUPLY 3/8 X 55“
24TUBE-OVN PILOT SAFETY 3/16 X 48 1/2 LOT 1-5, 8-10
25ORIFICE-PILOT .014 7 NAT. 11“ LP
26WCI 549T023P01
26BWCI 355T219S01
26AWCI 636T097P01
27FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2)
28COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUBE 3/16“ (2)
