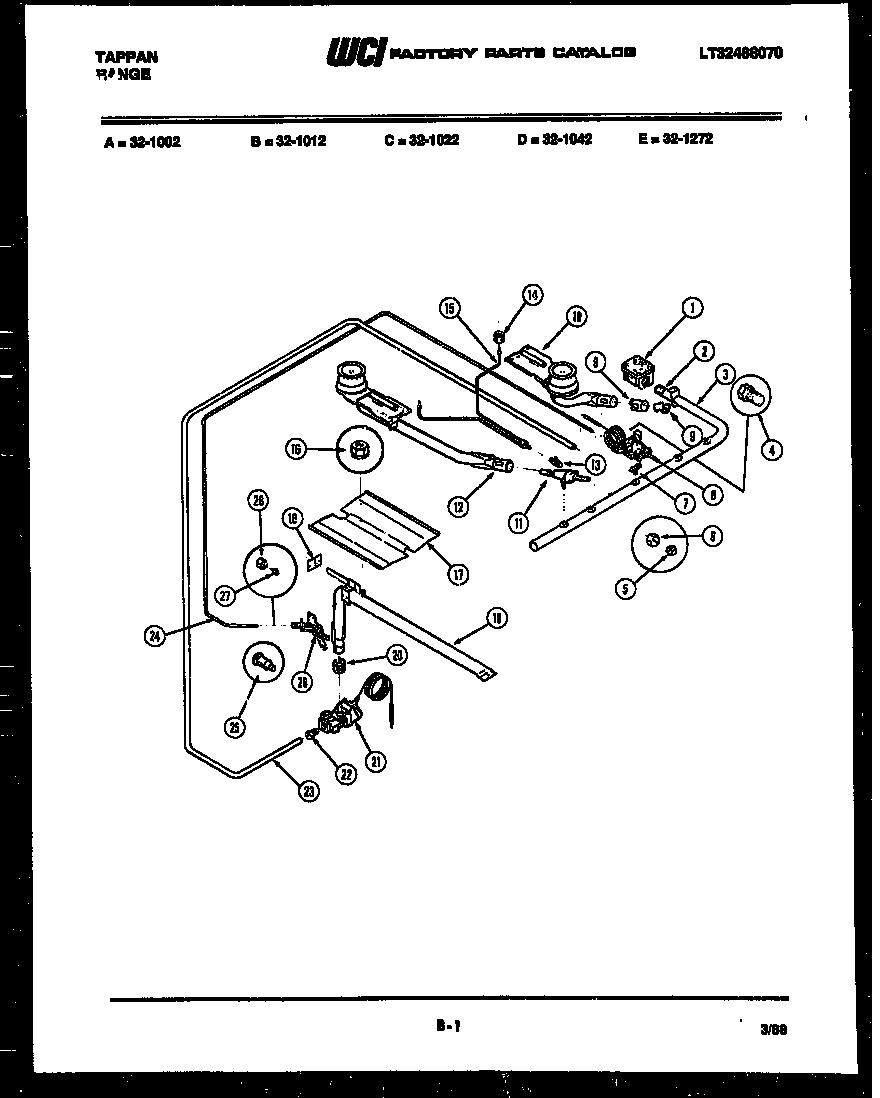

32-1042-45-01 09 – BURNER, MANIFOLD AND GAS CONTROL

Written by

Products

Position	Product
1	WCI 166T008P03
2	WCI 008T276F04
3	WCI 439T046P04
5	WCI T7-205-2
6	WCI T7-205-3
7	WCI 003T039P01
8A	SCREW-THERMO MTG 10-24 X 9/32“ HEX HD (2) (NON-ILLUSTRATED)
8	THERMOSTAT-OVEN
9B	SCREW-UPR OVN ASSY 8-32 X 3/8“ PH BD HD (2)
9A	MIXER-AIR-TP BURNR
10	WCI 080T013P01
11	VALVE-TP BURNER (4)
12	WCI 080T013P02
