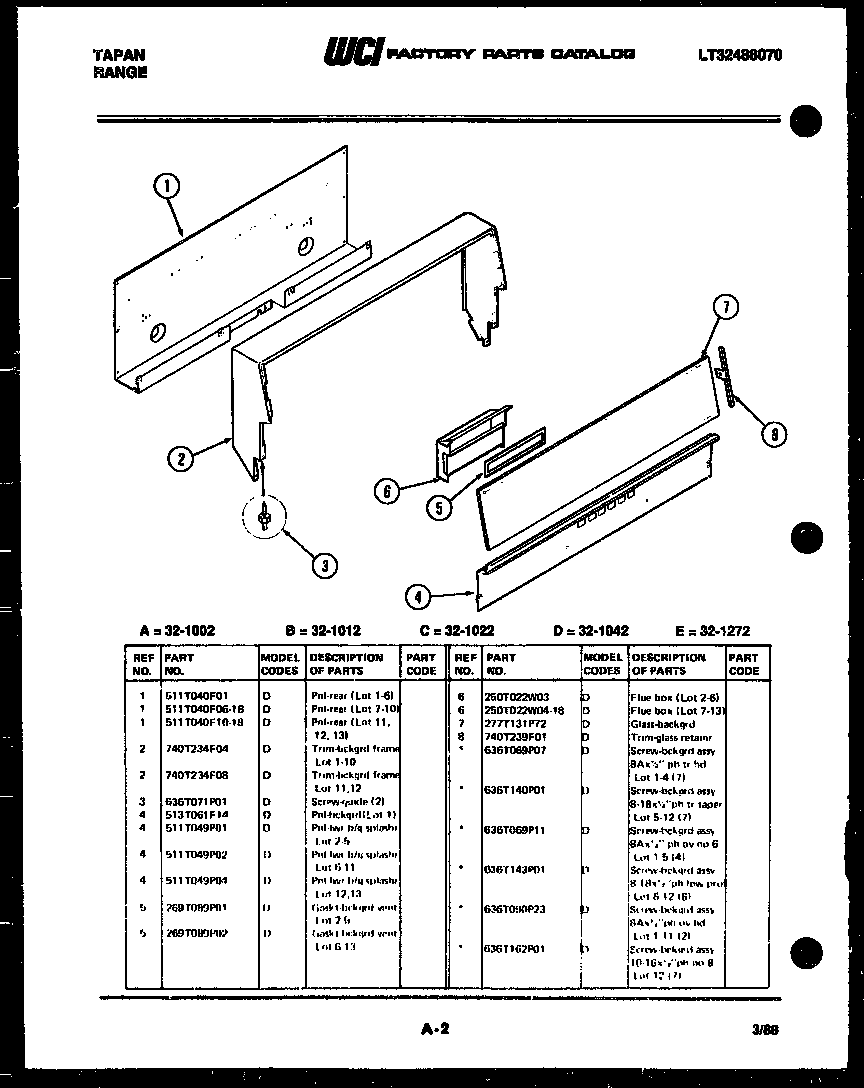

32-1042-45-03 02 – BACKGUARD

Written by

Products

Position	Product
*29315	5303300265 Frigidaire Oven Screw
*29313	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
*29317	SCREW (2) (NON-ILLUSTRATED)
1	PANEL, REAR
2	TRIM, BKGRD FRAME
3	SCREW, GUIDE (2)
4	WCI 511T049P01
5	WCI 269T089P01
6	WCI 250T022W03
7	BKGRD (GLASS)
8	TRIM, RETAINER GLASS END (2)
